Rear Compartment Lid Harness Routing
Rear Compartment Lid Harness Routing
Harness Routing Views

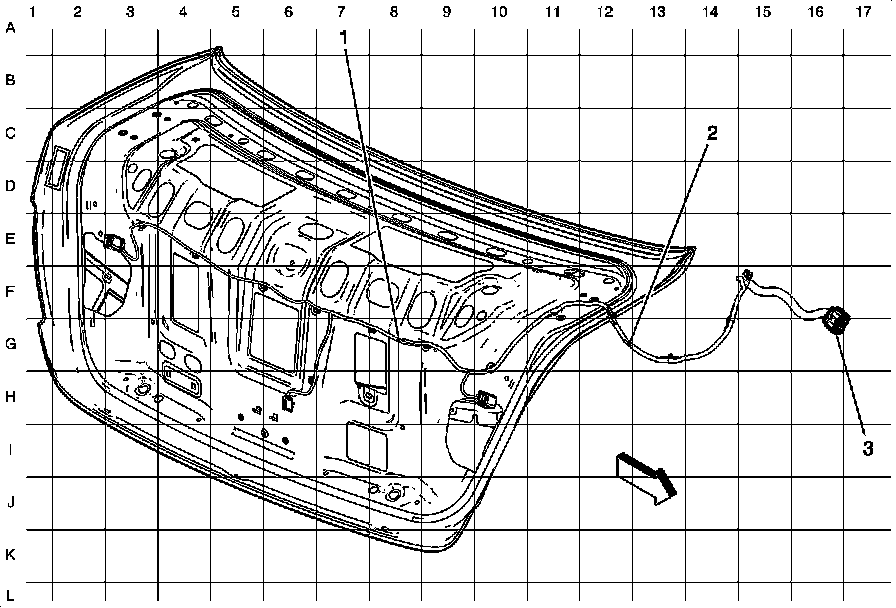

Rear Compartment Lid Harness Routing
1
- J901
2
- J900
3
- X900
