Power and Ground Distribution
>>
Locations
>>
Fuse Block - Rear Body X1
Fuse Block - Rear Body X1
Electrical Center Identification Views

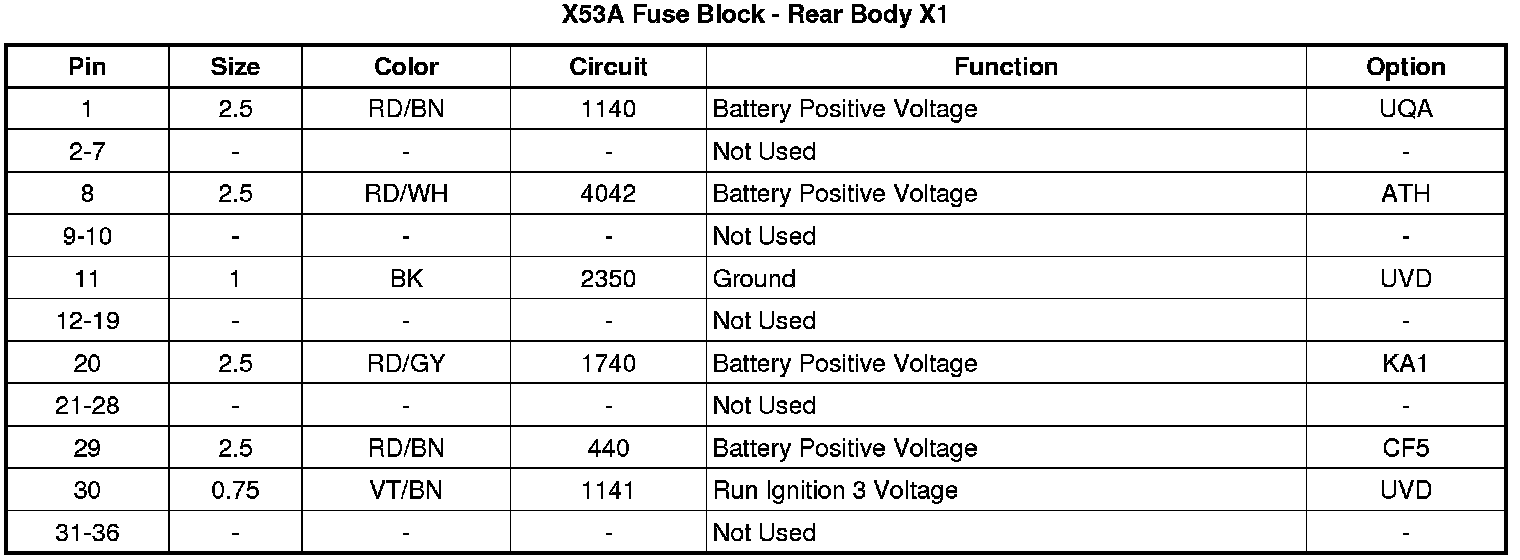

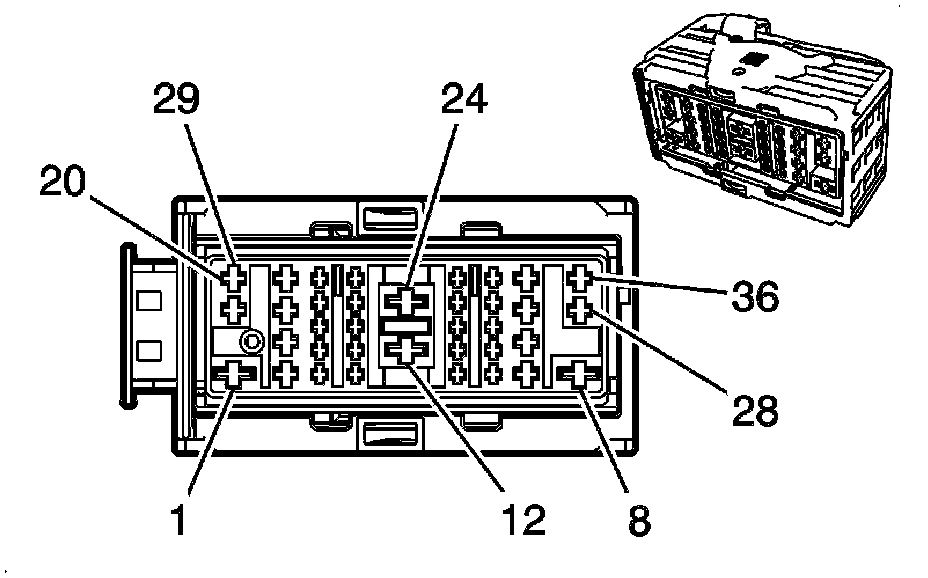

X53A Fuse Block - Rear Body X1
