Power and Ground Distribution
>>
Locations
>>
Fuse Block - Rear Body X3 (UD7)
Fuse Block - Rear Body X3 (UD7)
Electrical Center Identification Views

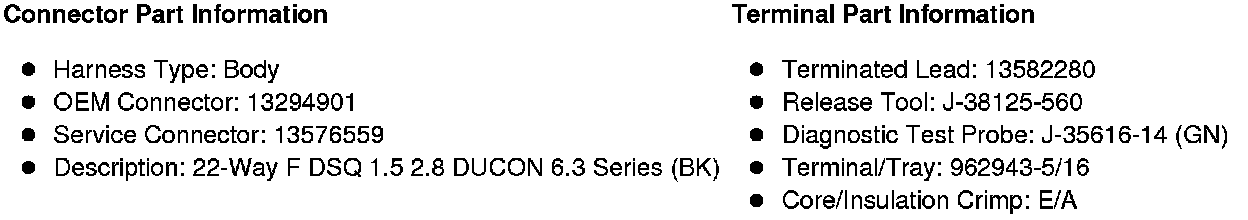

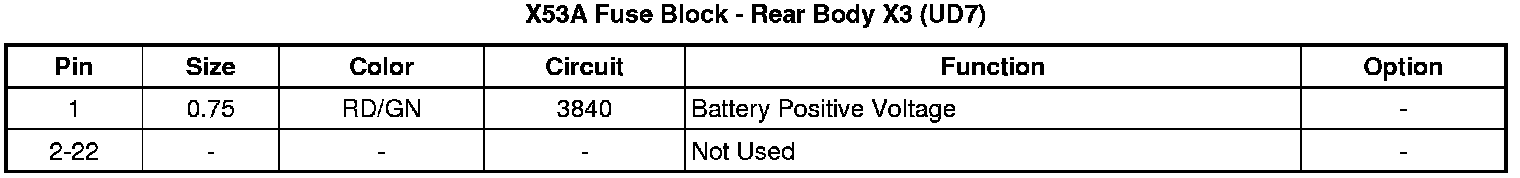

X53A Fuse Block - Rear Body X3 (UD7)
