X310

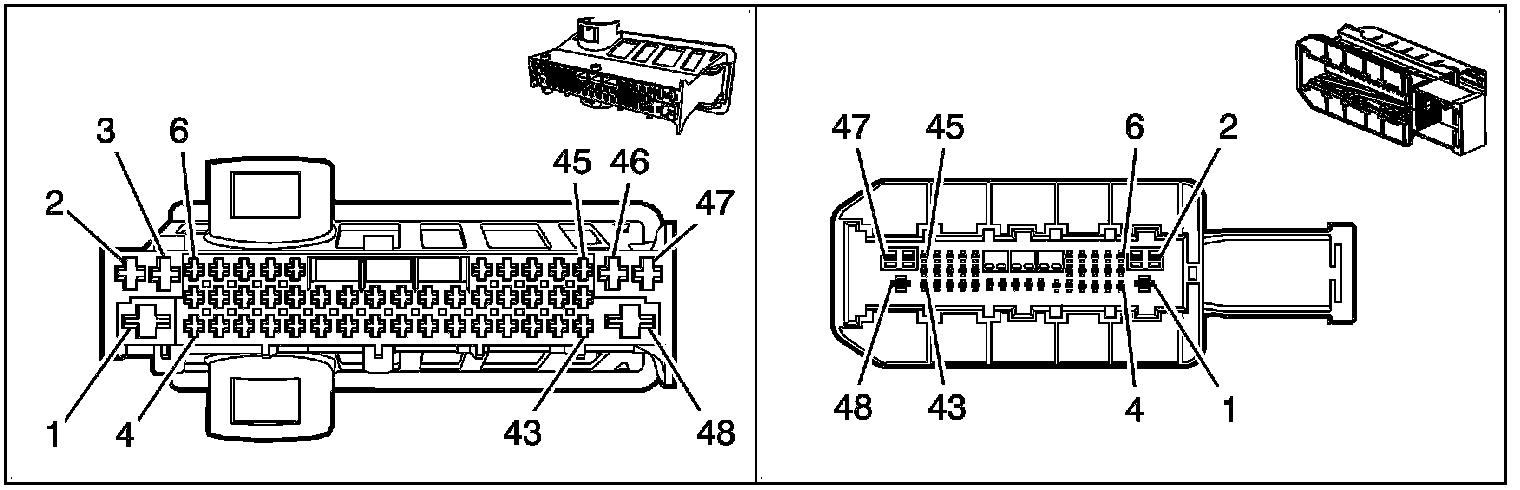

Inline Harness Connector End Views

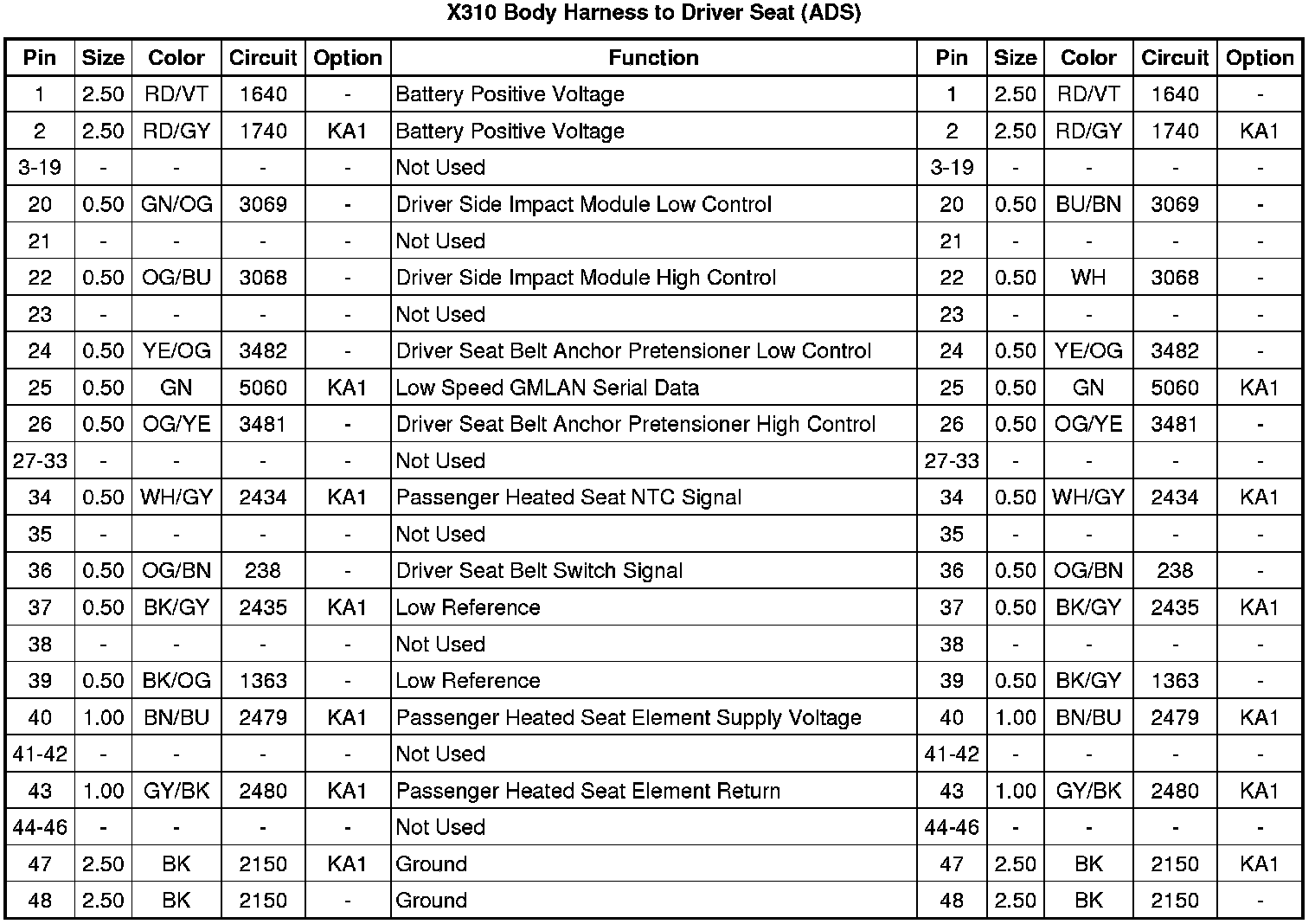

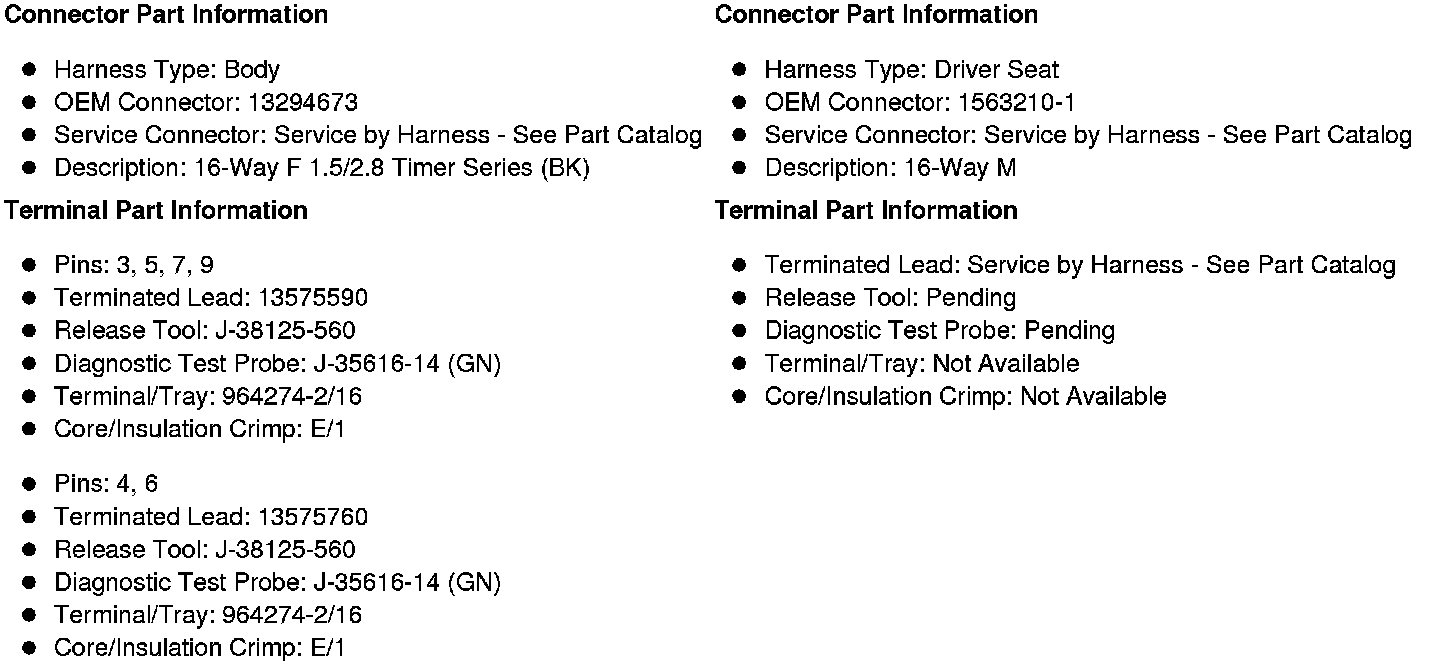

X310 Body Harness to Driver Seat (ADS)
















Inline Harness Connector End Views

X310 Body Harness to Driver Seat (without ADS)
