Power Steering Pressure Switch

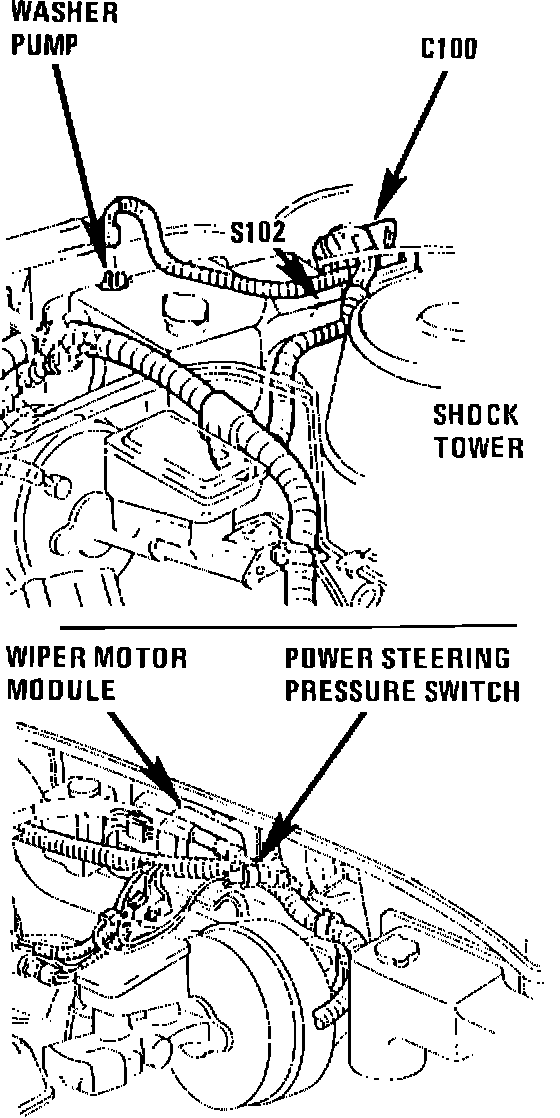

LH Side Of Engine Compartment.:
LH Side Of Engine Compartment, Near Master Cylinder
Applicable to: 1984-85 Cimarron
