Turn Signals

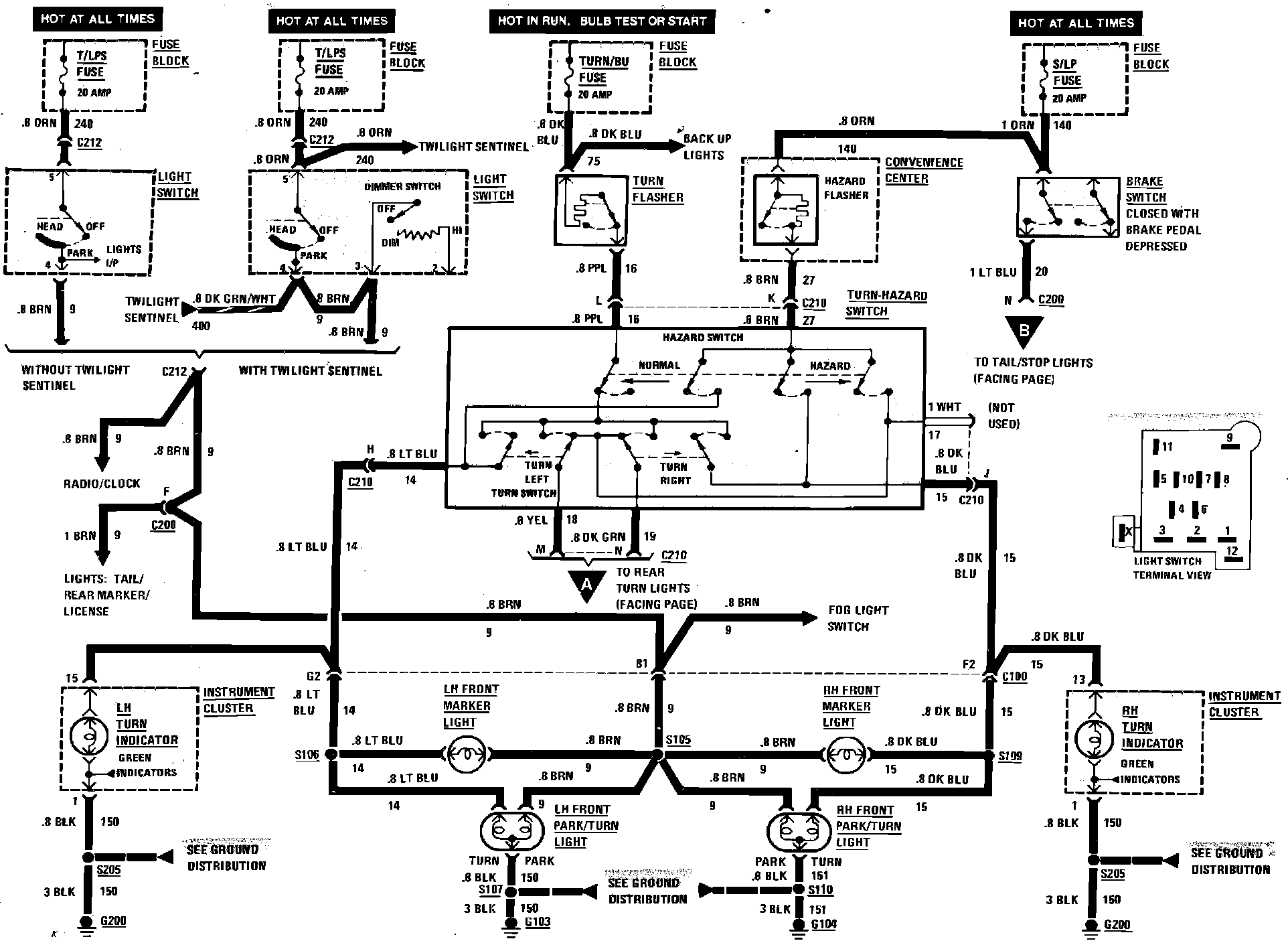

Front Marker, Front Park, Hazard Stop & Turn Signal Lamp Wiring Circuit:



Front Marker, Front Park, Hazard Stop & Turn Signal Lamp Wiring Circuit:
