Home >> Cadillac >> 1984 >> Cimarron L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram

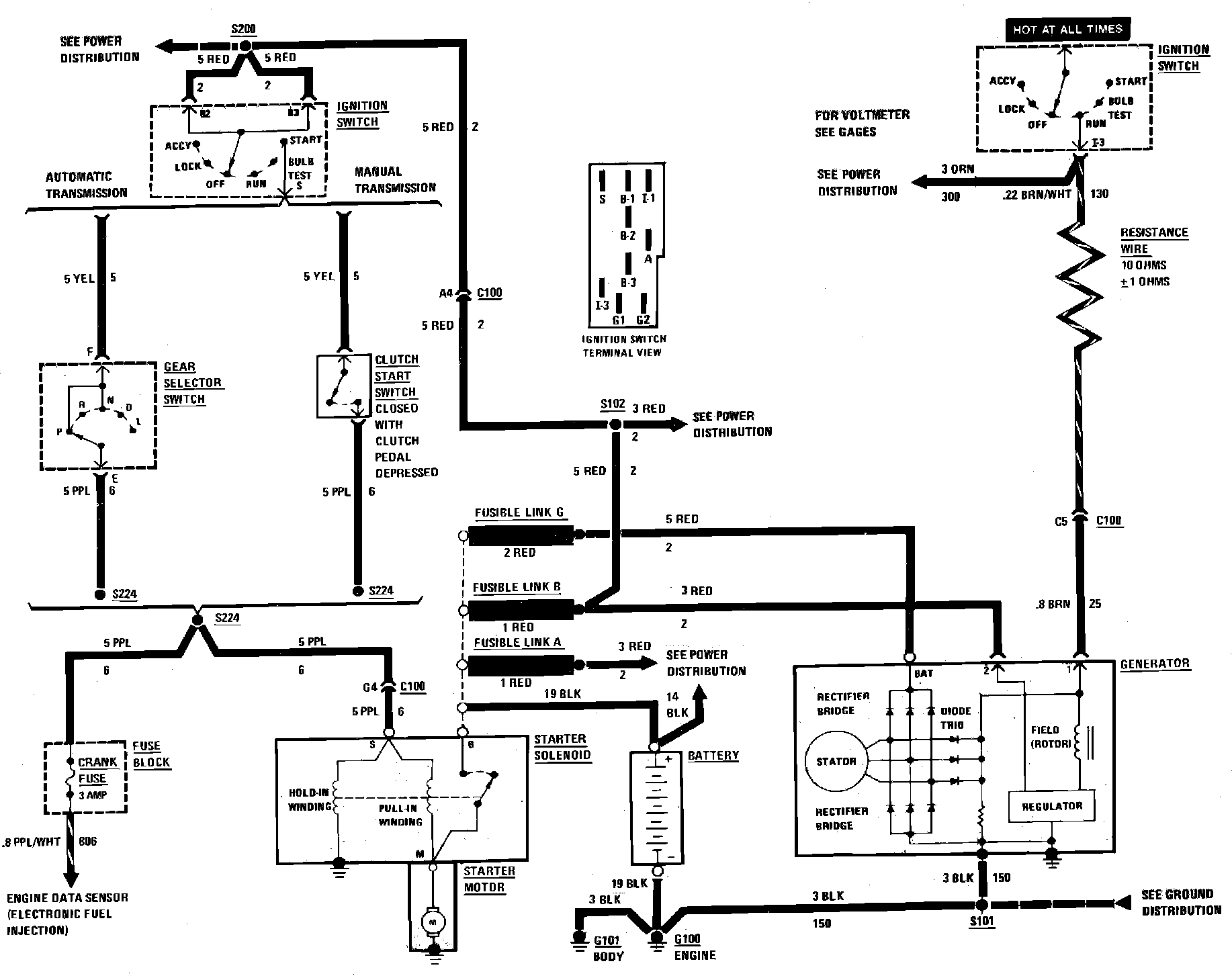

Charging System & Starter Wiring Circuit:
