C2 (Clear)

PCM Connector C2 (Clear):

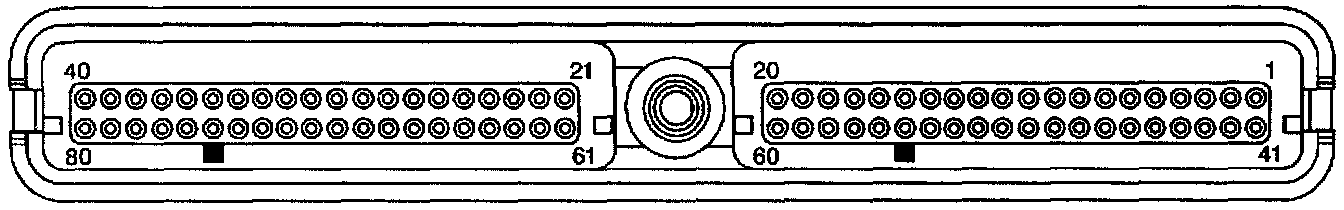

PCM Connector Face

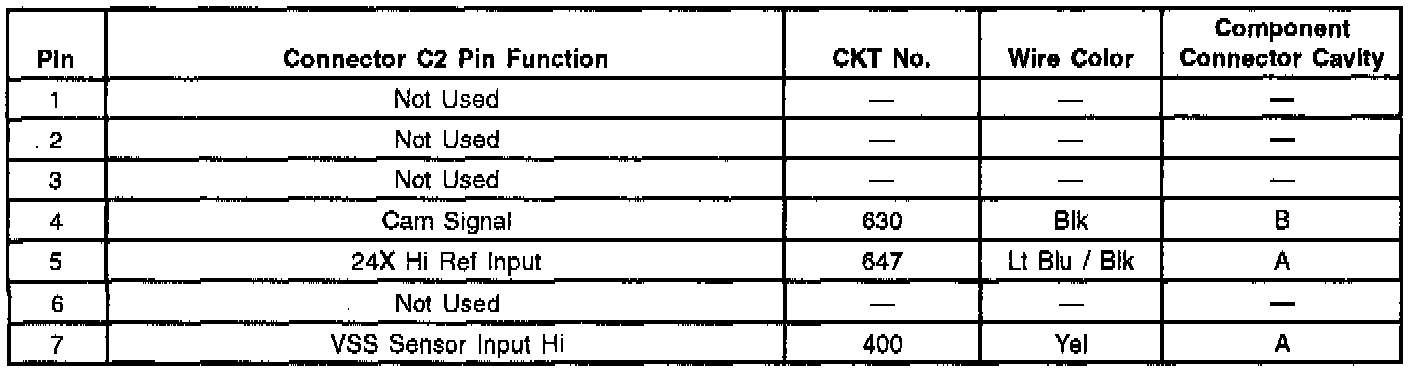

PCM Connector C2 Pin Functions - Part 1 Of 3:

Pins 1 through 7

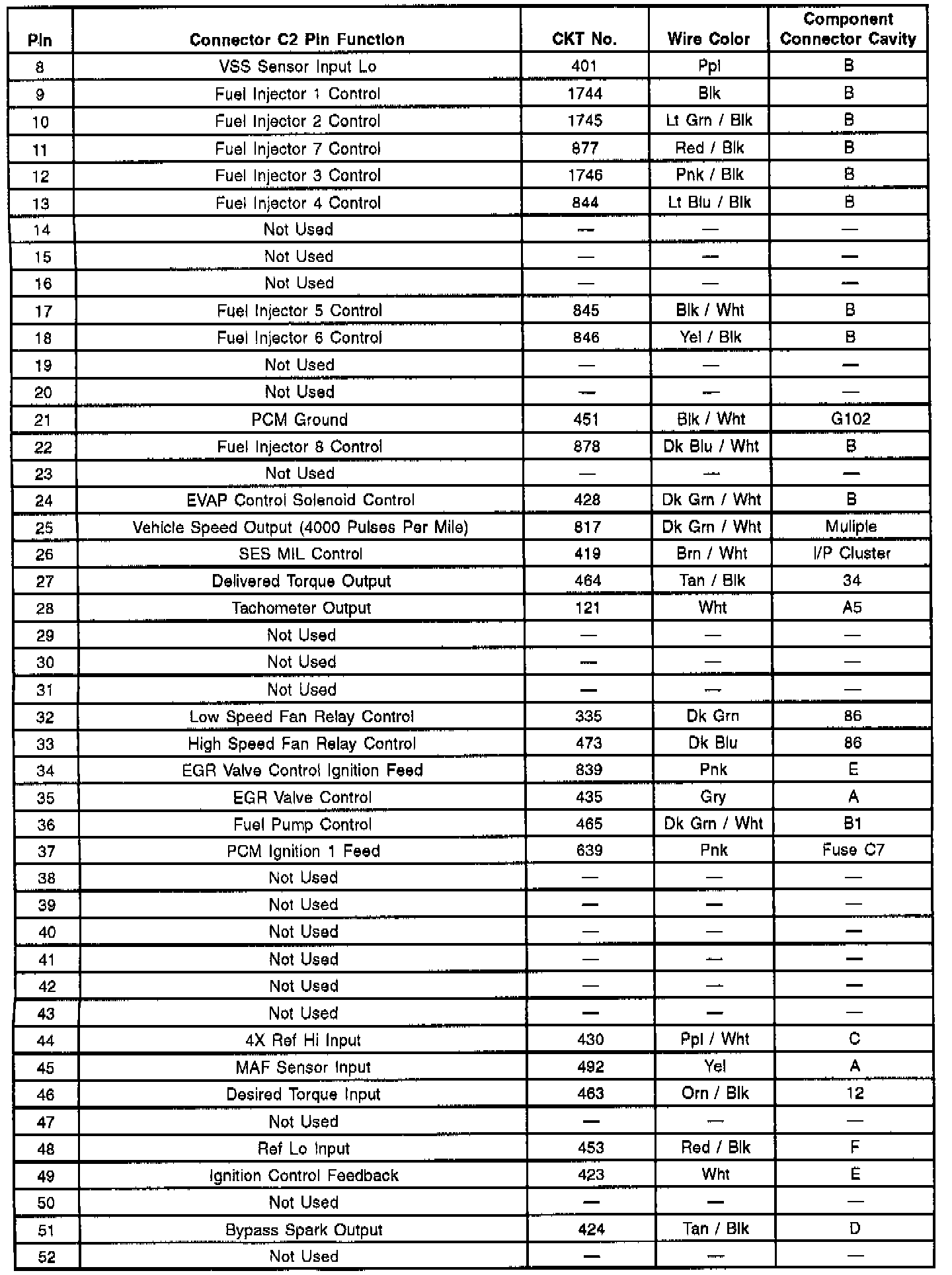

PCM Connector C2 Pin Functions - Part 2 Of 3:

Pins 8 through 52

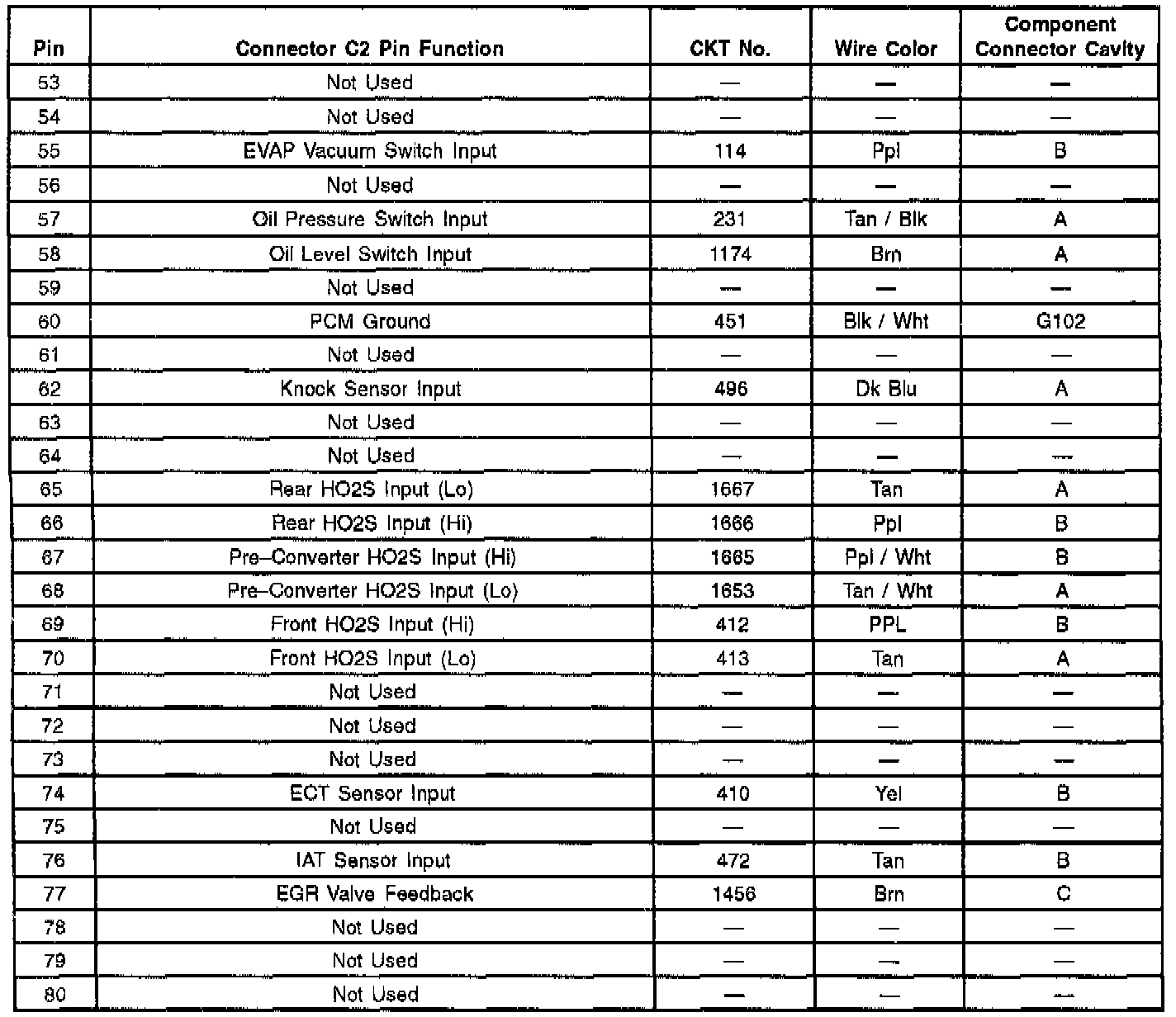

PCM Connector C2 Pin Functions - Part 3 Of 3:

Pins 53 through 80
