Body Control Module
Body Control Module

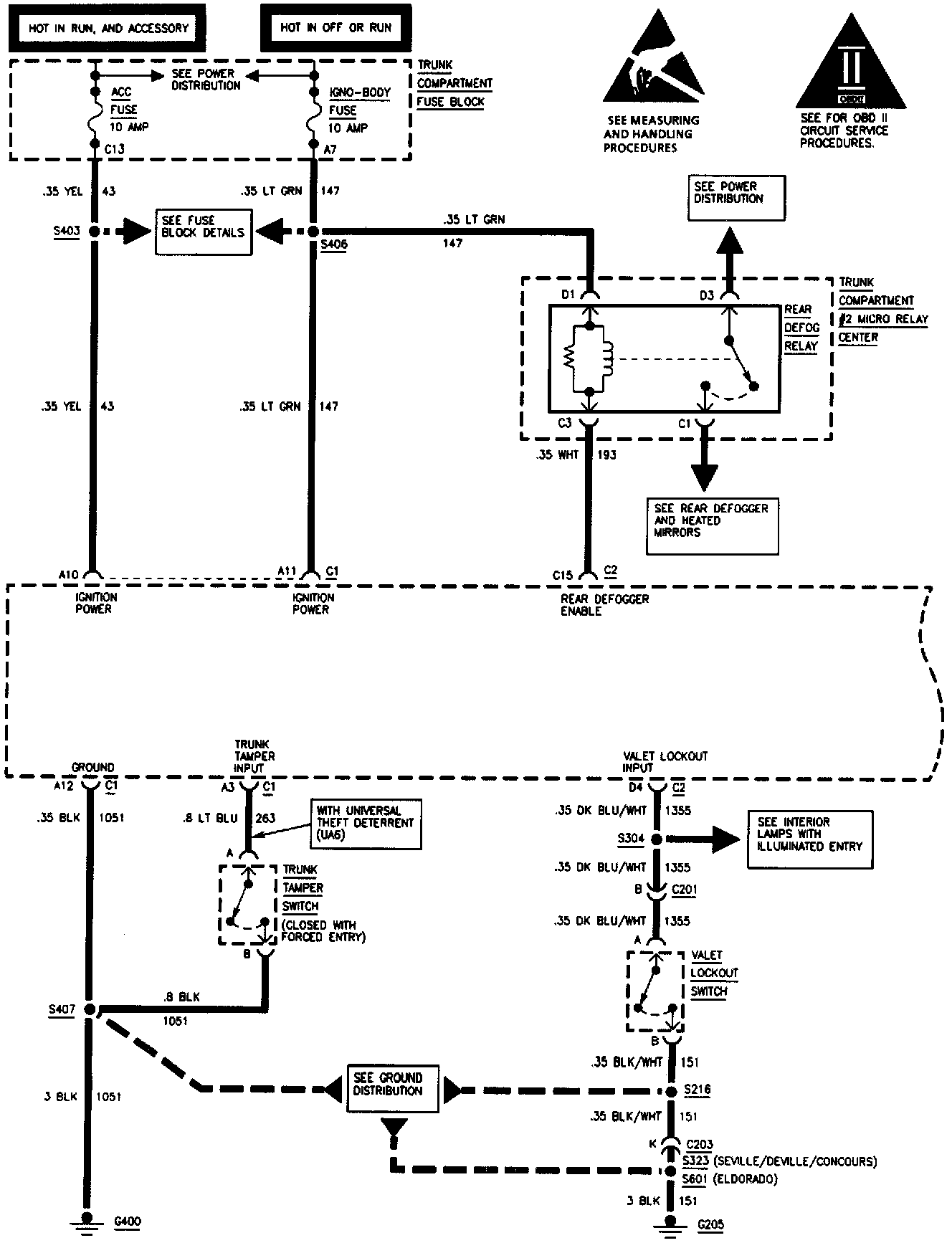

Body Control Systems (Part 1 Of 3):

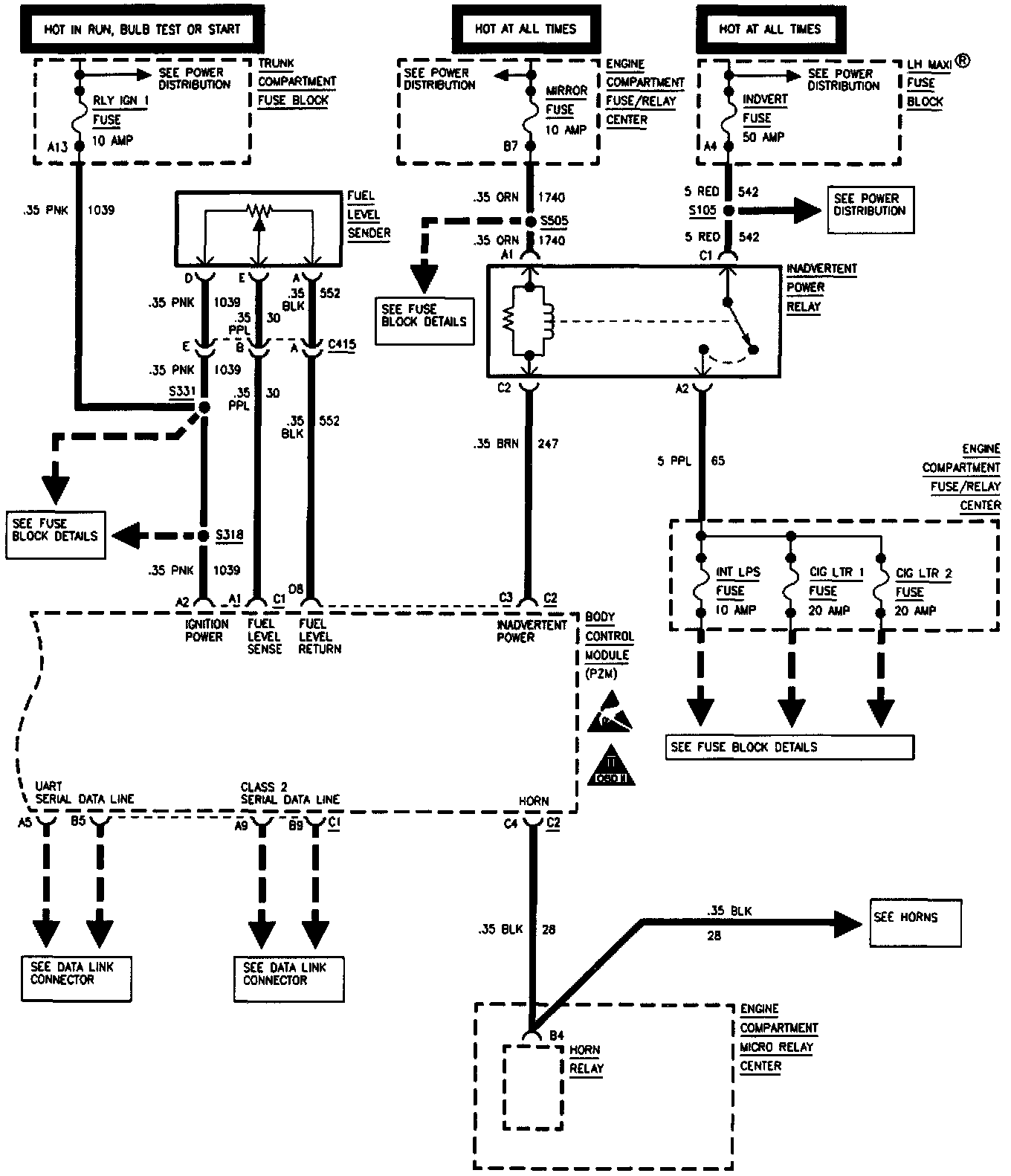

Body Control Systems (Part 2 Of 3):
Body Control Systems (Part 3 Of 3):
