EBTCM, Generator, A/C Relay and RSS
EBTCM, Generator, A/C Relay and RSS

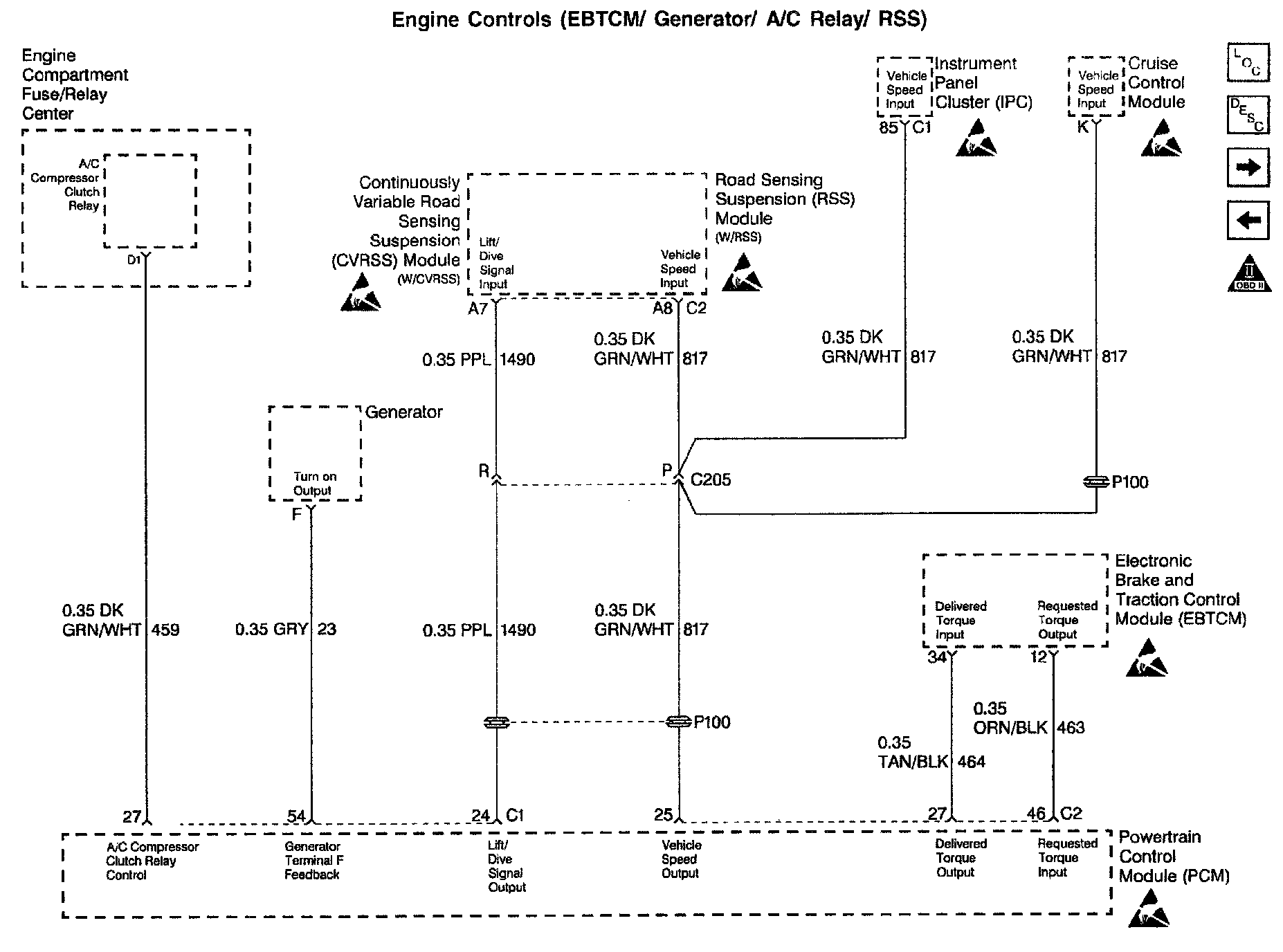

Engine Controls (EBTCM, Generator, A/C Relay, RSS):
