Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> IAT/ECT/TP/MAP and BBV Sensors

IAT/ECT/TP/MAP and BBV Sensors

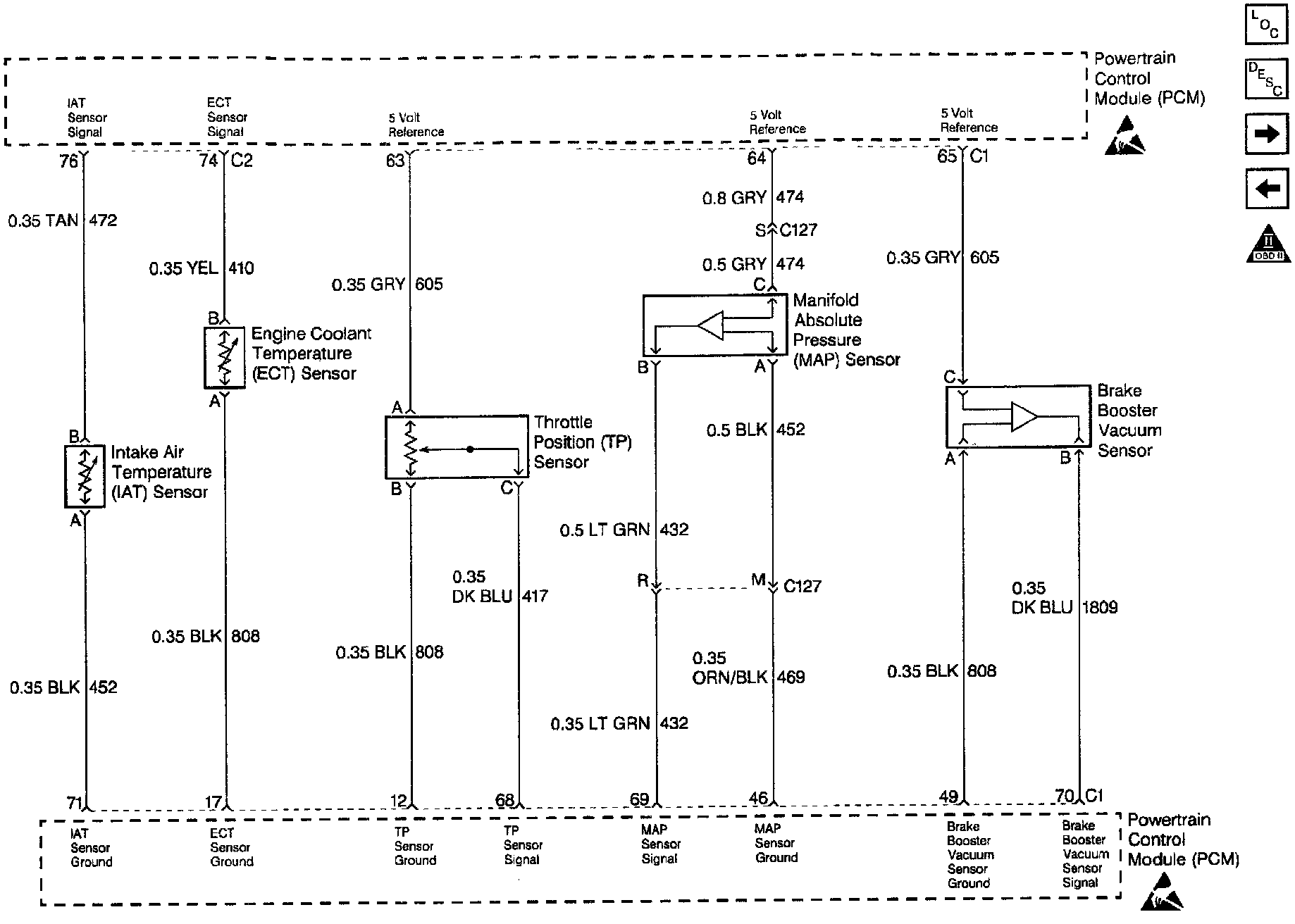

Engine Controls (IAT/ECT/TP/MAP and BBV Sensors):
