Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Electrical Diagrams >> Heated Oxygen Sensor (HO2S 2)

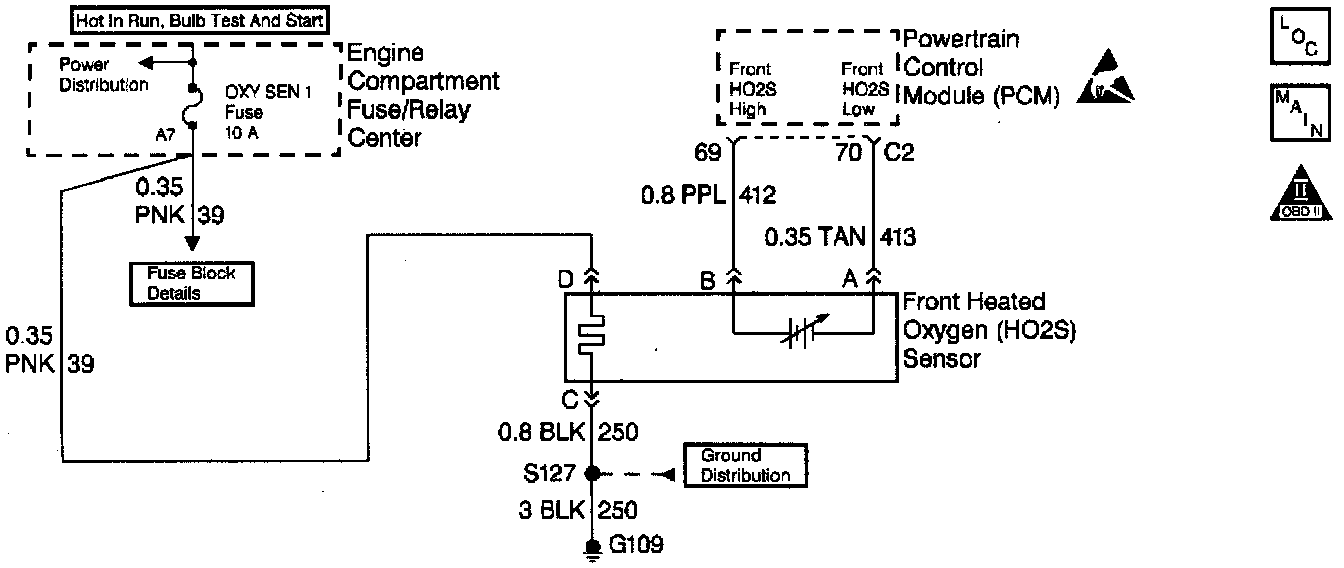

Heated Oxygen Sensor (HO2S 2)

HO2S Circuit Low Voltage Bank2 Sensor1:
