Engine 3 Data Values

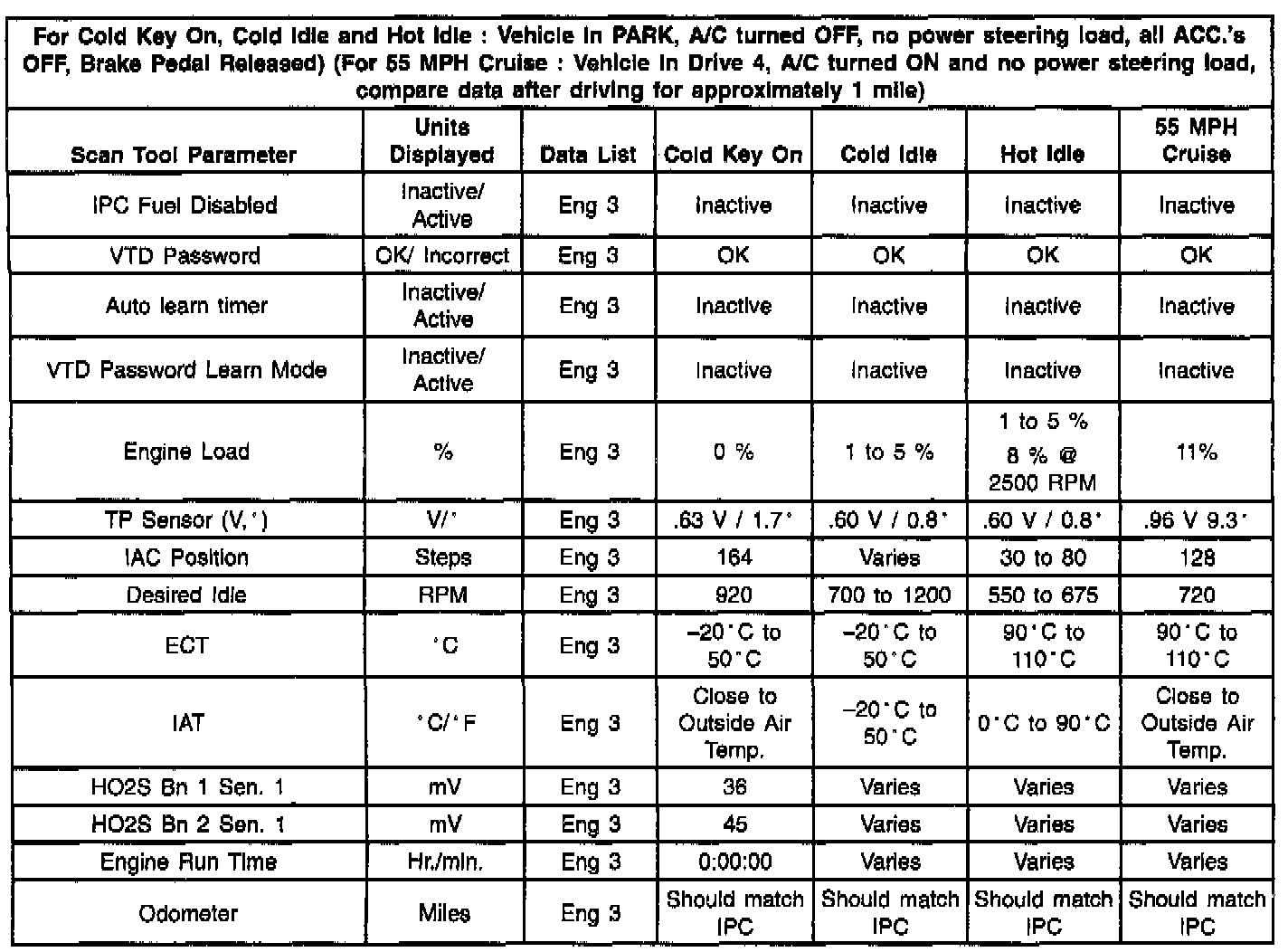

Engine 3 Data Values - Part 1 0f 4:

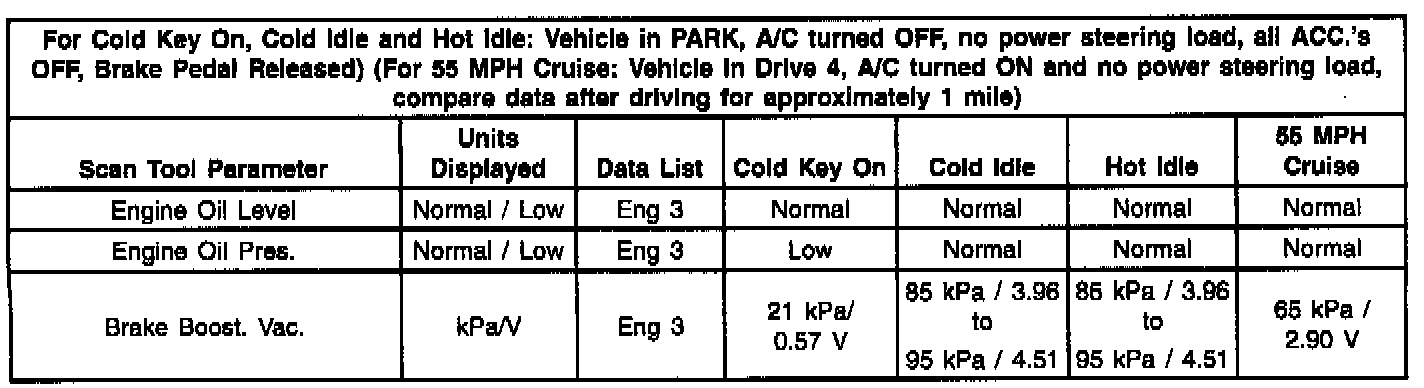

Engine 3 Data Values - Part 2 0f 4:

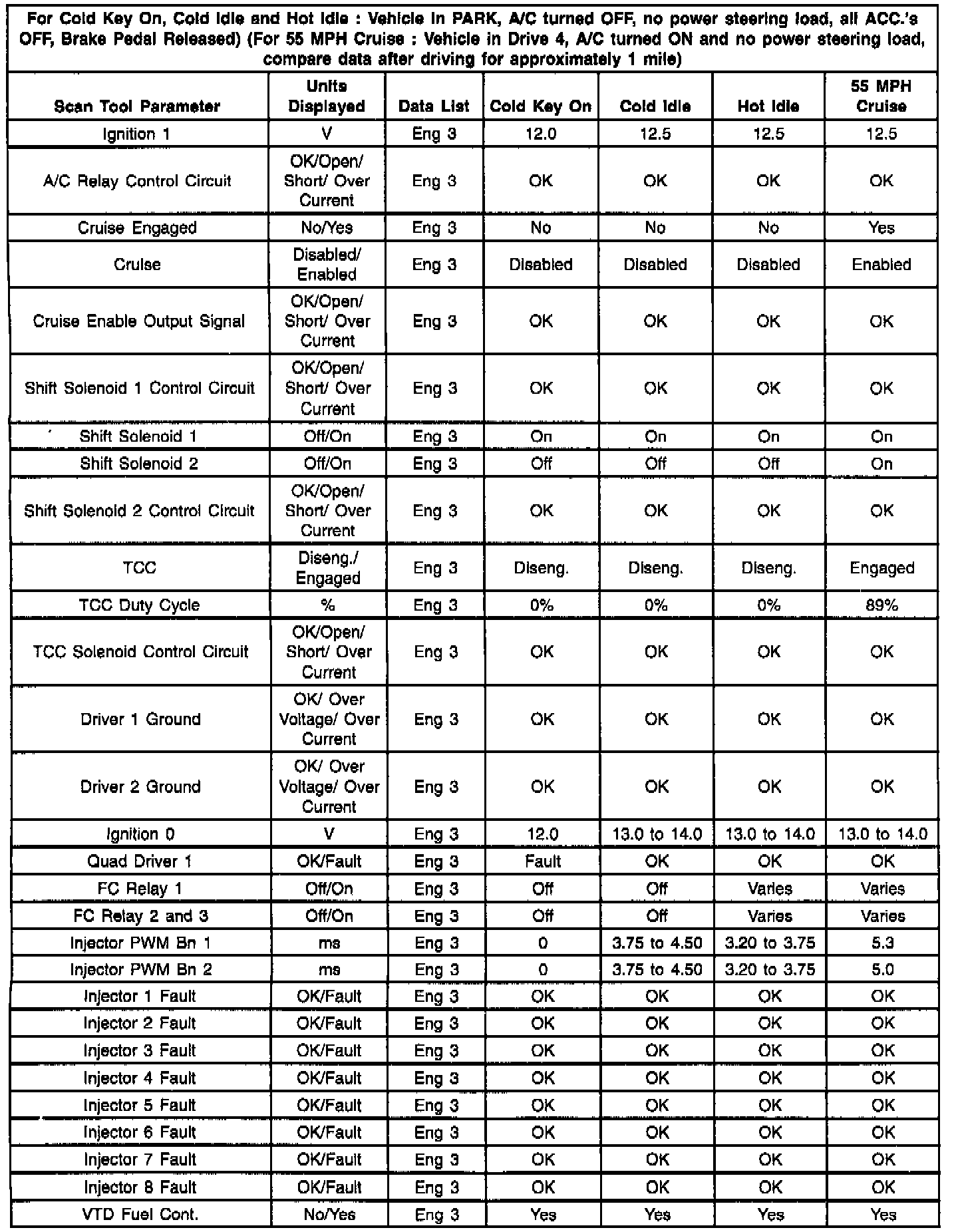

Engine 3 Data Values - Part 3 0f 4:



Engine 3 Data Values - Part 4 0f 4:
