Front Sensing Accelerometer

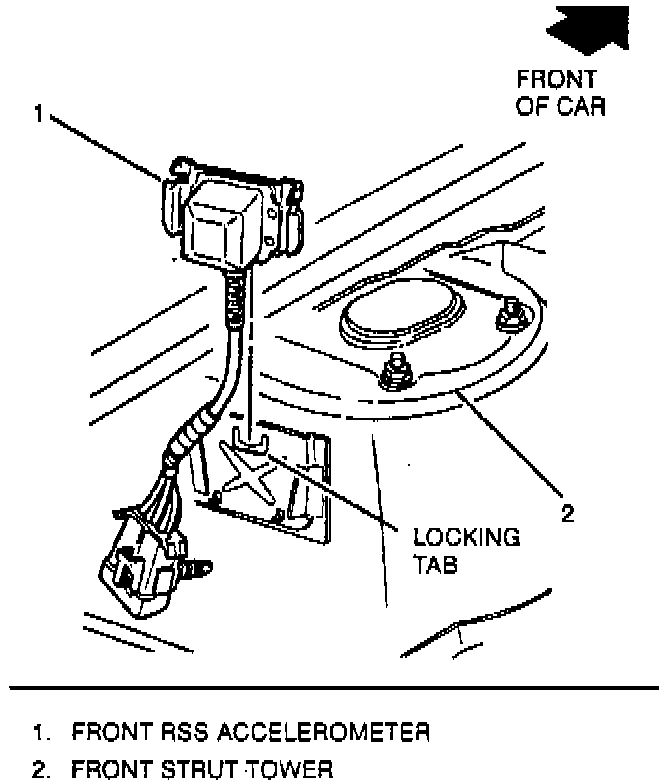

Fig. 125 Front Accelerometer.:

REPLACE
1. Disconnect accelerometer electrical connector, Fig. 125.
2. Depress accelerometer locking tab and remove from bracket.
3. Reverse procedure to install.
