Rear Sensing Accelerometer

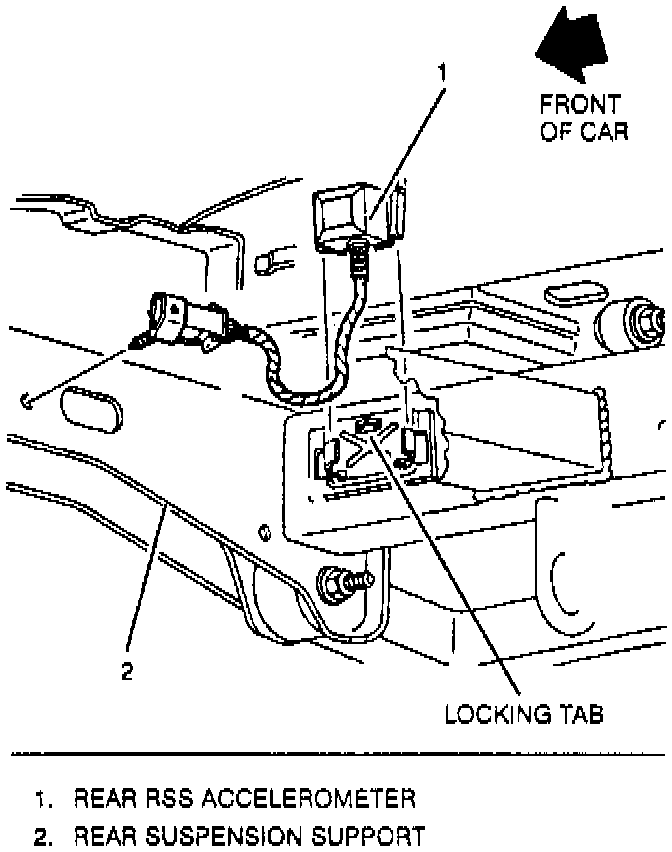

Fig. 126 Rear Accelerometer Replacement. (LR Shown RR Similar):

REPLACE
1. Raise and support vehicle.
2. Disconnect accelerometer electrical connector, Fig. 126.
3. Depress accelerometer locking tab and remove from bracket.
4. Reverse procedure to install.
