Troubleshooting Hints

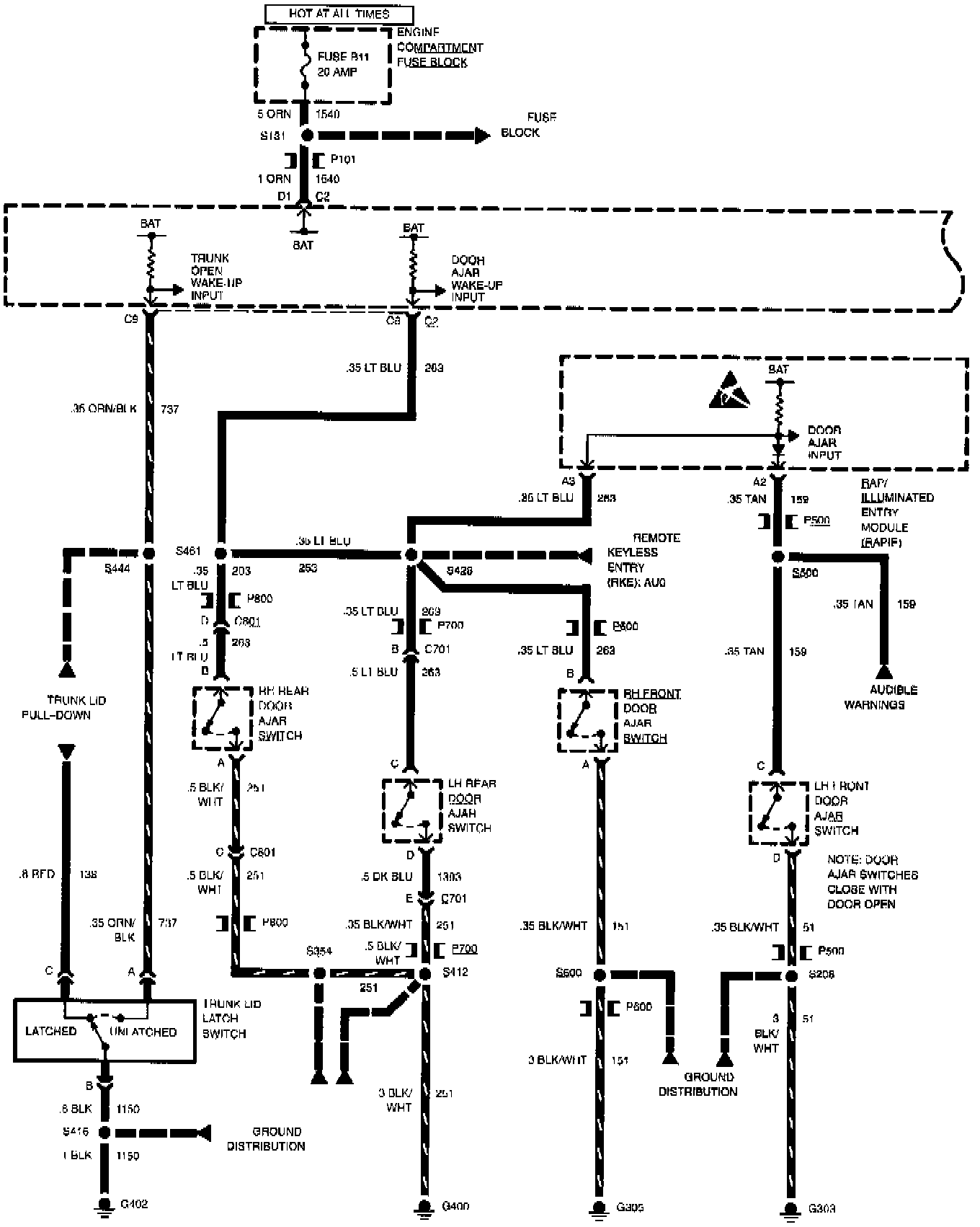

Fig. 6 ELC Wiring Diagram (Part 1 Of 2).:

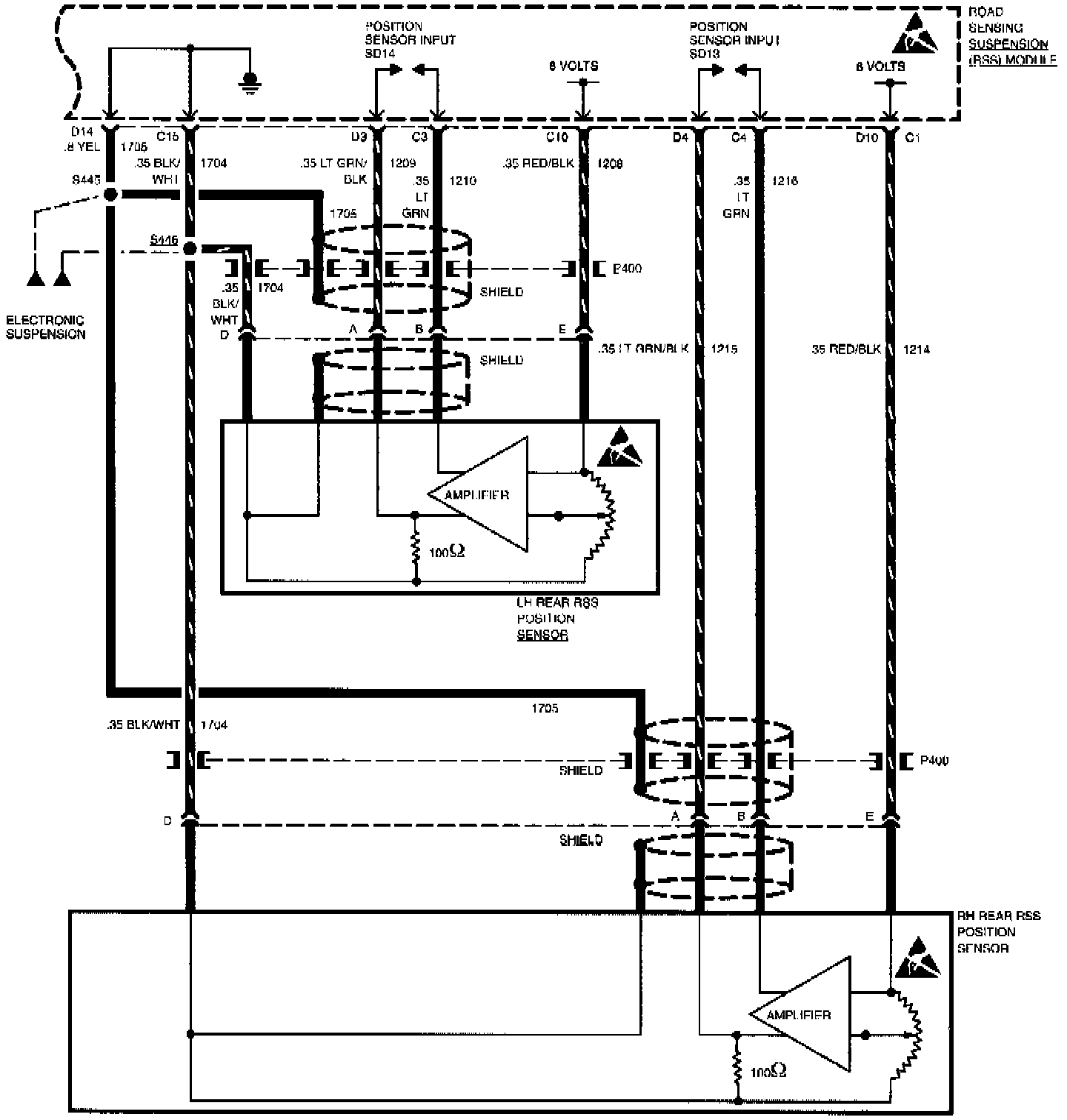

Fig. 6 ELC Wiring Diagram (Part 2 Of 2).:

If ELC system is inoperative, check fuse in the fuse block. Refer to ELC wiring circuits, Fig. 6, when performing electrical diagnosis on the ELC system.
