Door Handle

REMOVAL PROCEDURE

Door Removal Procedure:

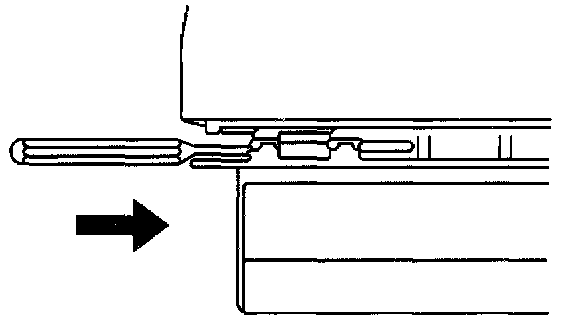

1. Use a punch and a hammer drive out door hinge roll pins.

Door Removal Procedure:

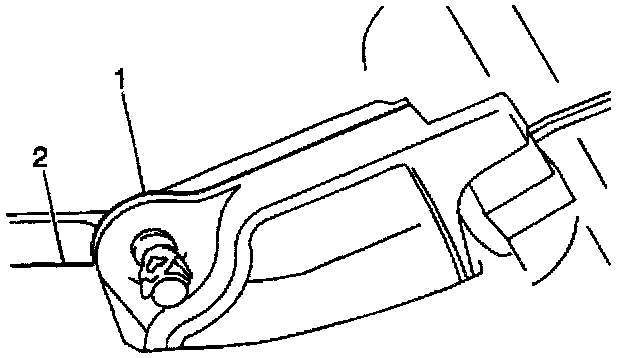

2. Remove the I/P compartment door from instrument panel compartment box.

IMPORTANT: The removal of the compartment door from the guide stops requires care not to break the guide stops as the guide stop on the left side (where damper mounts) is a tight fit when removing.

INSTALLATION PROCEDURE

Door Cover Installation Procedure:

1. Install the I/P compartment door to I/P compartment box.

Door Cover Installation Procedure:

2. Using a punch and a hammer drive in door hinge roll pins.
