Molding Replacement: Body Side Roof Drip
REMOVAL PROCEDUREMolding Replacement - Body Side Roof Drip: Removal Procedure:
1. Open both doors to expose the screws.
2. Remove the six screws from the front half of the drip rail molding.
Molding Replacement - Body Side Roof Drip: Removal Procedure:

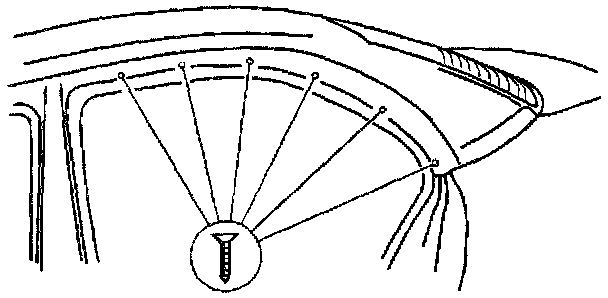

3. Remove the six screws from the rear half of the drip rail molding.
Molding Replacement - Body Side Roof Drip: Removal Procedure:

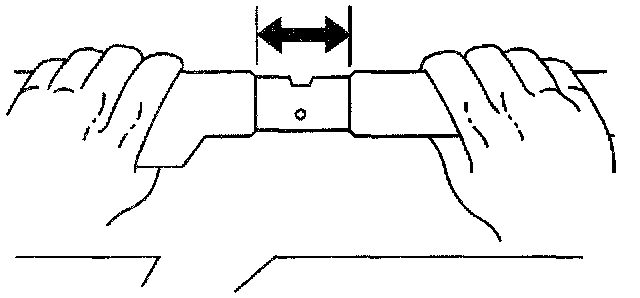

4. The drip rail molding separates in the middle between the front and rear door.
5. Remove the drip rail molding by rolling outward and lifting up.
^ The drip rail molding covers the flange, from roof to body.
^ The moldings runs from the front to the rear.
^ The moldings are serviced as two pieces.
^ When you remove the drip rail moldings, be careful not to bend the molding.
INSTALLATION PROCEDURE
Molding Replacement - Body Side Roof Drip: Installation Procedure:
1. Install the drip rail moldings.
1.1. Slide over the roof flange
1.2. Fit tight to body
2. Install the drip rail molding joints in the middle.
Molding Replacement - Body Side Roof Drip: Installation Procedure:

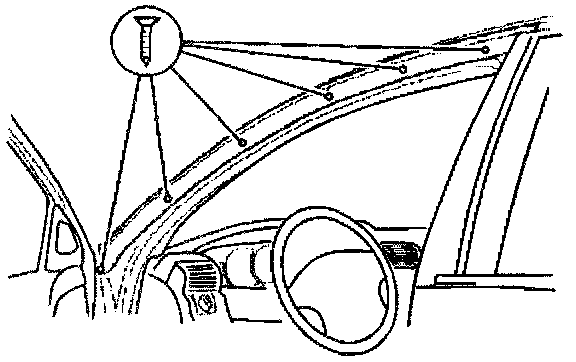

3. Install the six screws to the front half of the drip rail molding.
Tighten
Tighten the front half of the drip rail molding screws until fully seated and not stripped.
Molding Replacement - Body Side Roof Drip: Installation Procedure:

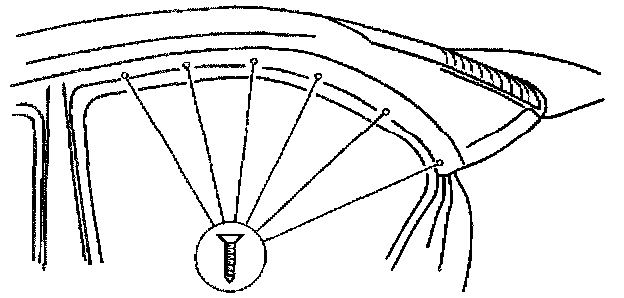

4. Install the six screws to the rear half of the drip rail molding.
Tighten
Tighten the rear half of the drip rail molding screws until fully seated and not stripped.
5. Close the doors.
