Armrest Replacement: Rear Seat

REMOVAL PROCEDURE

Armrest Replacement - Rear Seat: Removal Procedure:

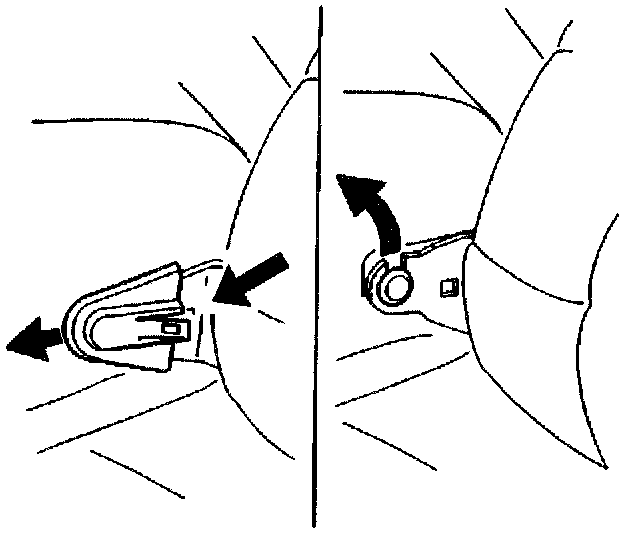

1. Remove the rear seatback center armrest hinge cover.
Use a small screwdriver to pry off rear seatback center armrest hinge cover.
2. Remove the rear seatback center armrest from retainer.

INSTALLATION PROCEDURE

Armrest Replacement - Rear Seat: Installation Procedure:

1. Install the rear back center armrest to retainer.
2. Install the rear seatback center armrest hinge cover by pushing on.
