Lumbar Adjuster Rods Replacement: Manual (If Equipped)

REMOVAL PROCEDURE

Lumbar Adjuster Rods Replacement - Manual (If equipped): Removal Procedure:

1. Remove the front seat.
2. Remove the front Seatback cushion cover.
Remove the front seatback cushion cover cushion and heating element does not have to be separated to replace lumbar components.

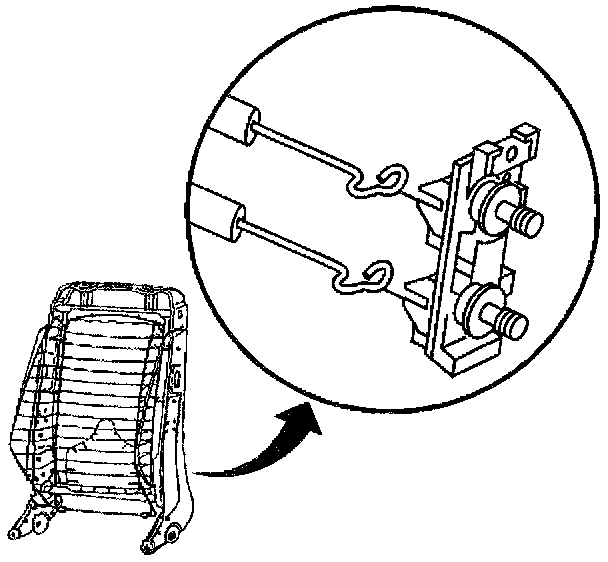

3. Remove the lumbar adjuster rods.
3.1. Unsnap the ring from the end of the lumbar actuator to release the rod.
3.2. Slide rod off of the lumbar actuator.

INSTALLATION PROCEDURE
1. Install the lumbar adjuster rods.
1.1. Slide rods over the end lumbar actuator.
1.2. Snap the rings to the end of the lumbar actuator to secure rods.
2. Install the front seatback cushion cover.
3. Install the front seat.
