Seat Back Cover Replacement: Rear
REMOVAL PROCEDURESeat Back Cover Replacement (Rear): Removal Procedure:
1. Remove the rear seat cushion.
2. Remove the rear seatback cushion.
3. Remove the rear seatback release latch.
4. Remove rear seatback heating element wiring from seatback pad, if equipped.
5. Remove the rear seatback cushion cover.

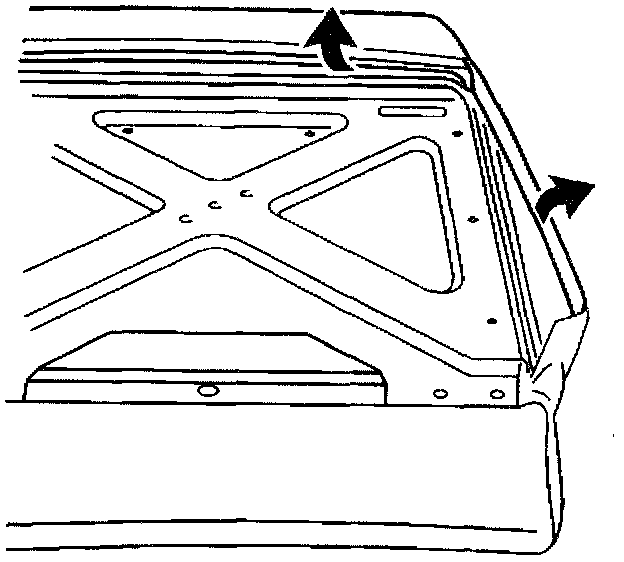

5.1. The rear seatback cushion cover unhooks from around the frame.
5.2. Remove the retainer rings from the center of rear seatback cushion cover.
INSTALLATION PROCEDURE
Seat Back Cover Replacement (Rear): Installation Procedure:
1. Install rear seatback heating element wiring to seatback pad, if equipped.
2. Install the rear seatback cushion cover.
2.1. Install retaining rings to the center of the rear seatback cushion coven

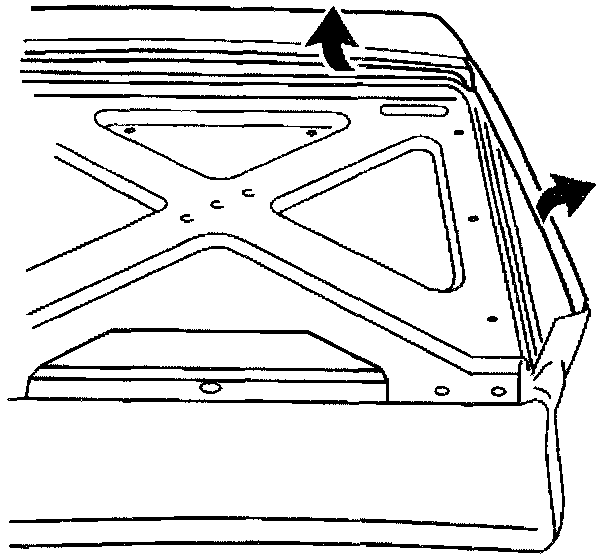

2.2. Install rear seatback cushion cover around the frame.
3. Install the rear seatback release latch.
4. Install the rear seatback cushion.
5. Install the rear seat cushion.
