Brake Pad Wear Sensor
>>
Left Front Disc Brake Pad Wear Sensor Connector
Left Front Disc Brake Pad Wear Sensor Connector

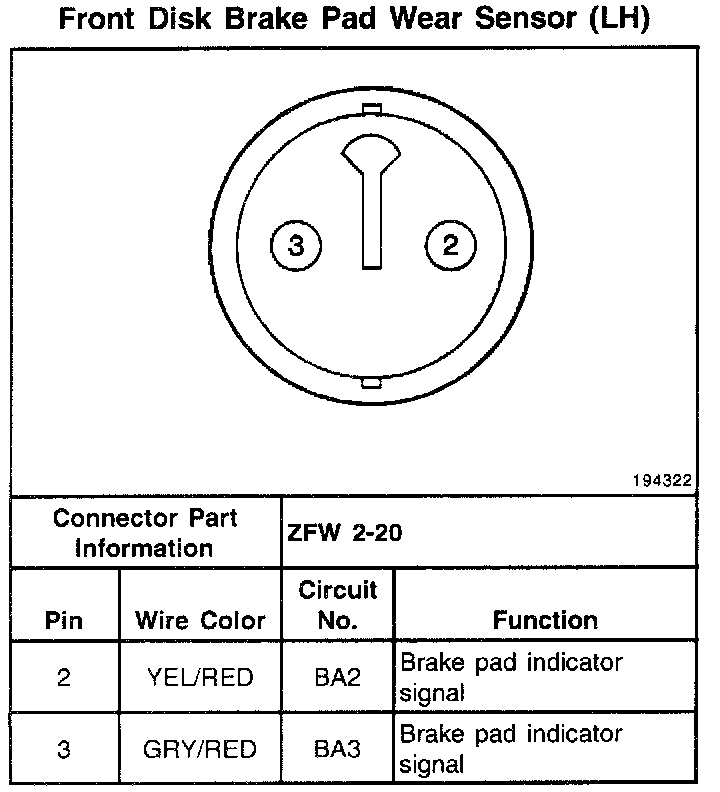

Front Disc Brake Pad Wear Sensor (LH):
