Brake Pad Wear Sensor
>>
Right Front Disc Brake Pad Wear Sensor Connector
Right Front Disc Brake Pad Wear Sensor Connector

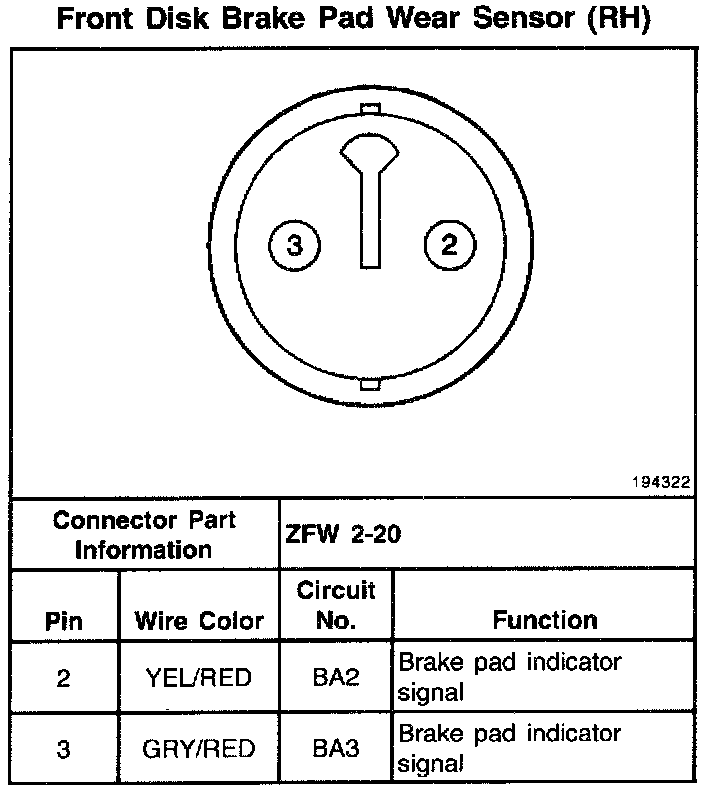

Front Disc Brake Pad Wear Sensor (RH):
