Home >> Cadillac >> 1997 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C600-C699

C600-C699

Inline Connector C600 (Part 1 Of 2):

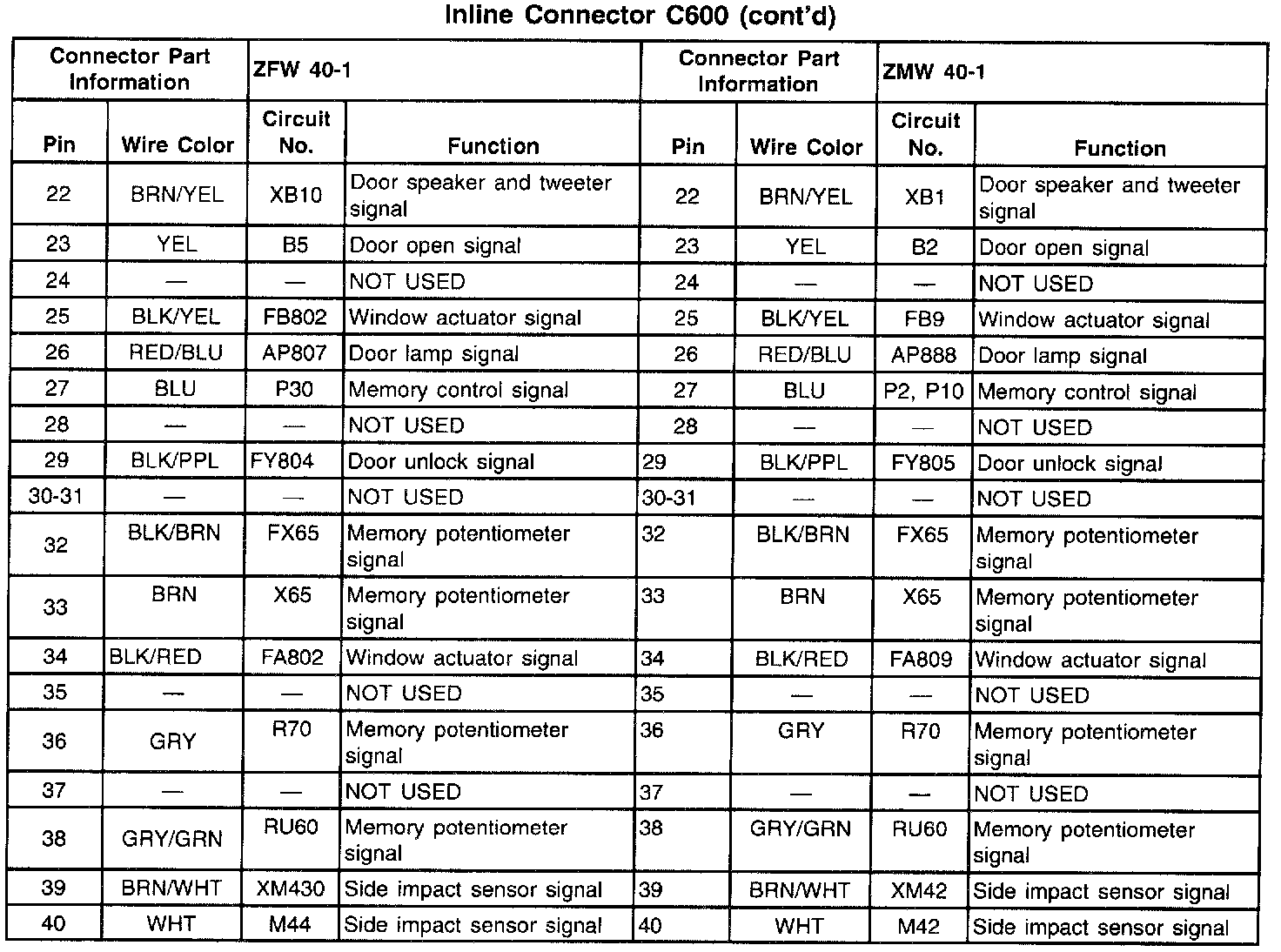

Inline Connector C600 (Part 2 Of 2):
