Home >> Cadillac >> 1997 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Seats Heater MAT Connectors, Rear

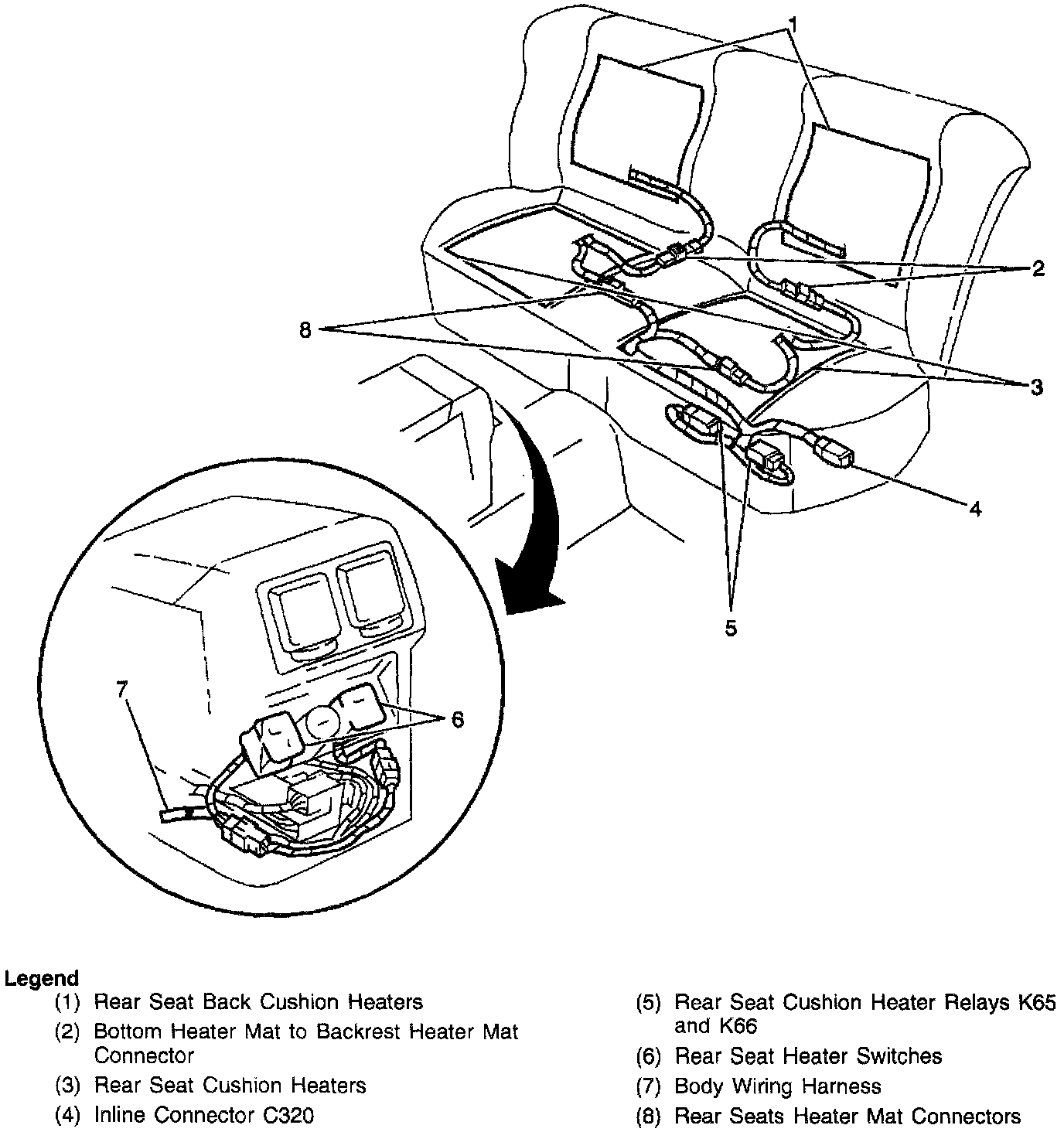

Seats Heater MAT Connectors, Rear

Rear Heated Seats:
