Ctds Door Jamb SW Inputs, Park Lamp and Low Beam Relays

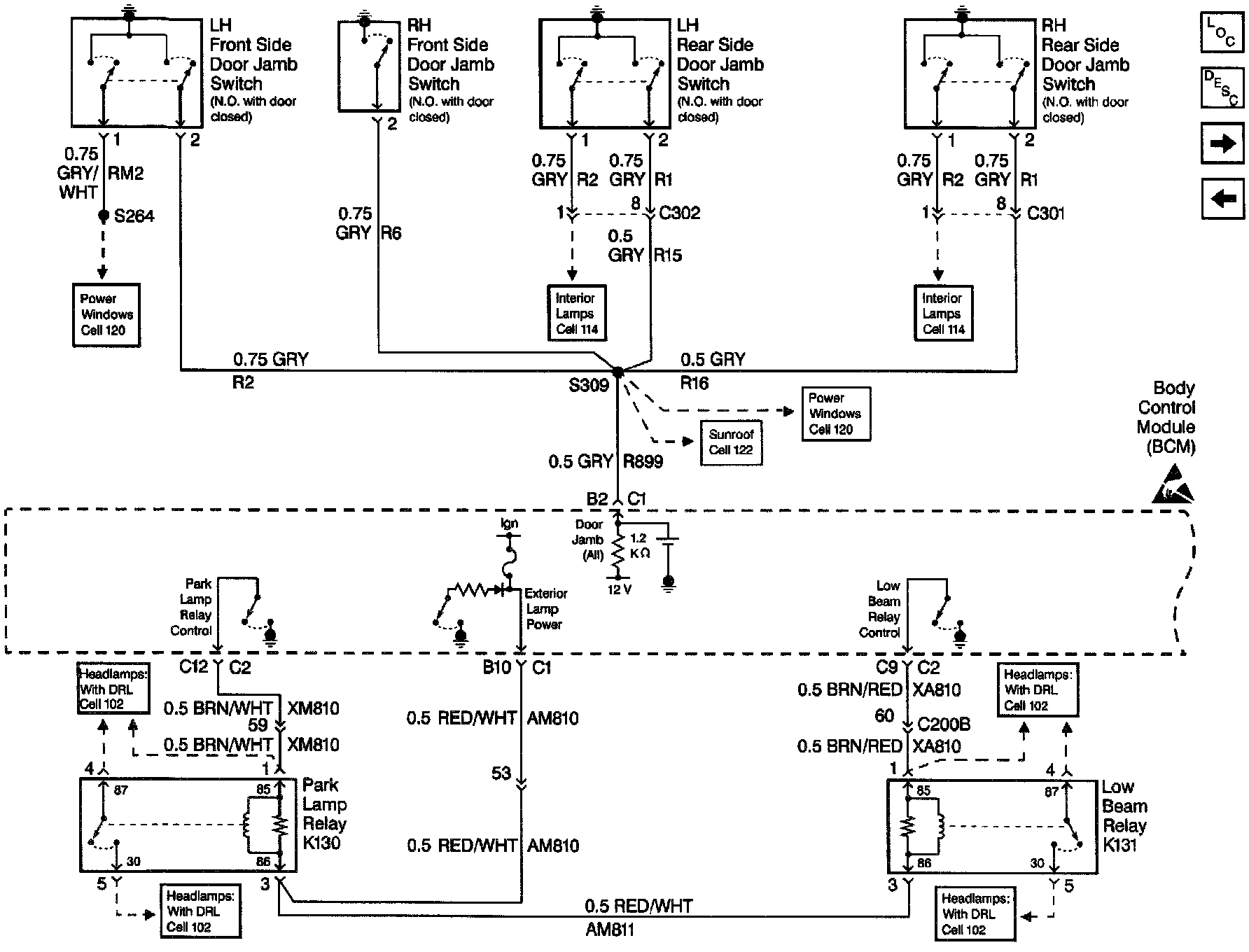

Theft Deterrent System Schematics: CTDS Door Jamb SW Inputs, Park Lamp And Low Beam Relays:
