Cruise Control
Cruise Control

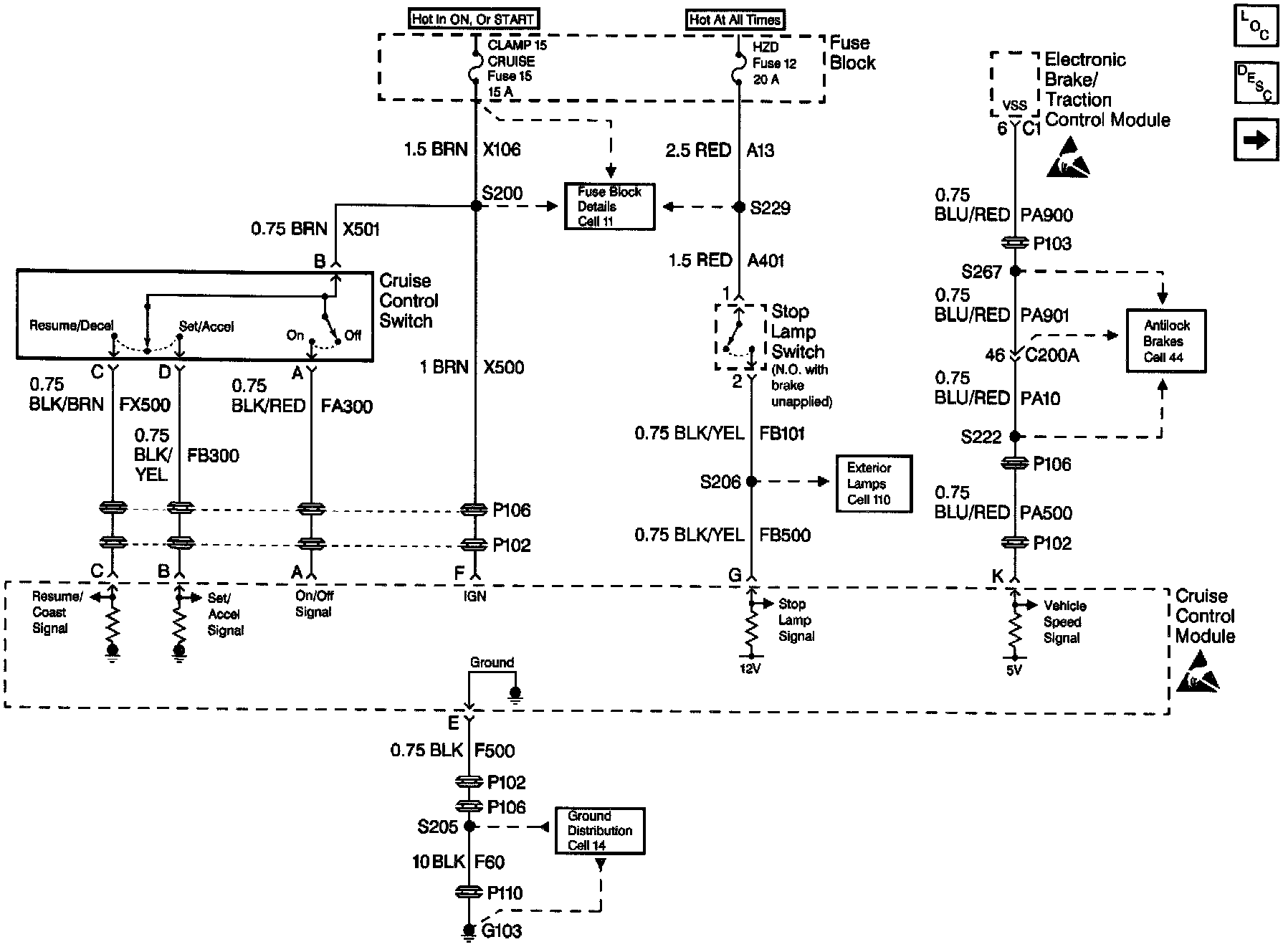

Cruise Control Schematics: Power, Ground, Cruise Control SW And Speed Signal Input:
Cruise Control Schematics:
