Keyless Entry
>>
Door Lock, Trunk Lid Release, Fuel Filler Door Lock Actuators
Door Lock, Trunk Lid Release, Fuel Filler Door Lock Actuators

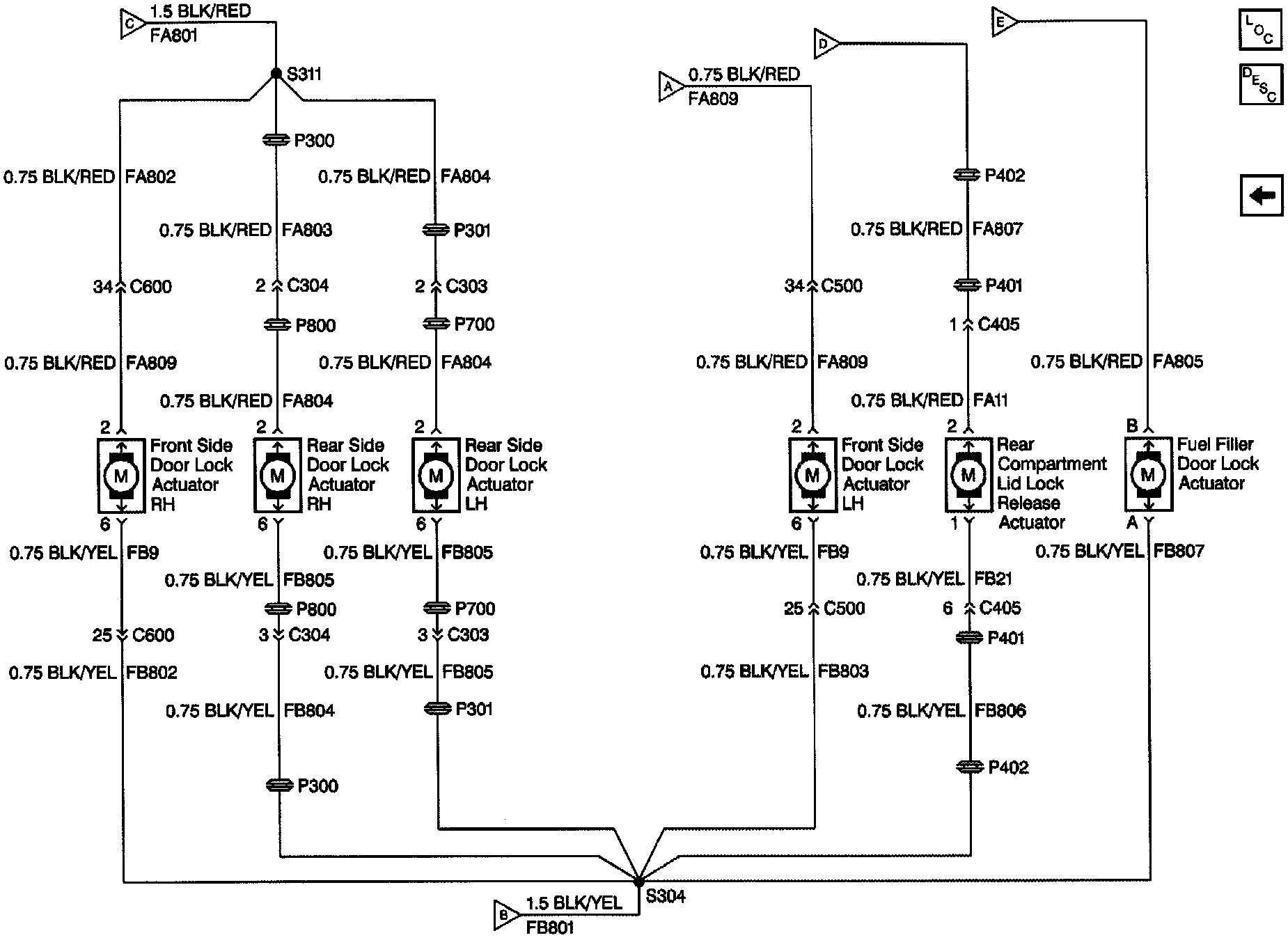

Keyless Entry Schematics: Door Lock, Trunk Lid Lock Release And Fuel Filler Door Lock Actuators:
