Cadillac
>>
1997
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Wswa SW, Interval SW, Wsw Motor and Relay
Wswa SW, Interval SW, Wsw Motor and Relay

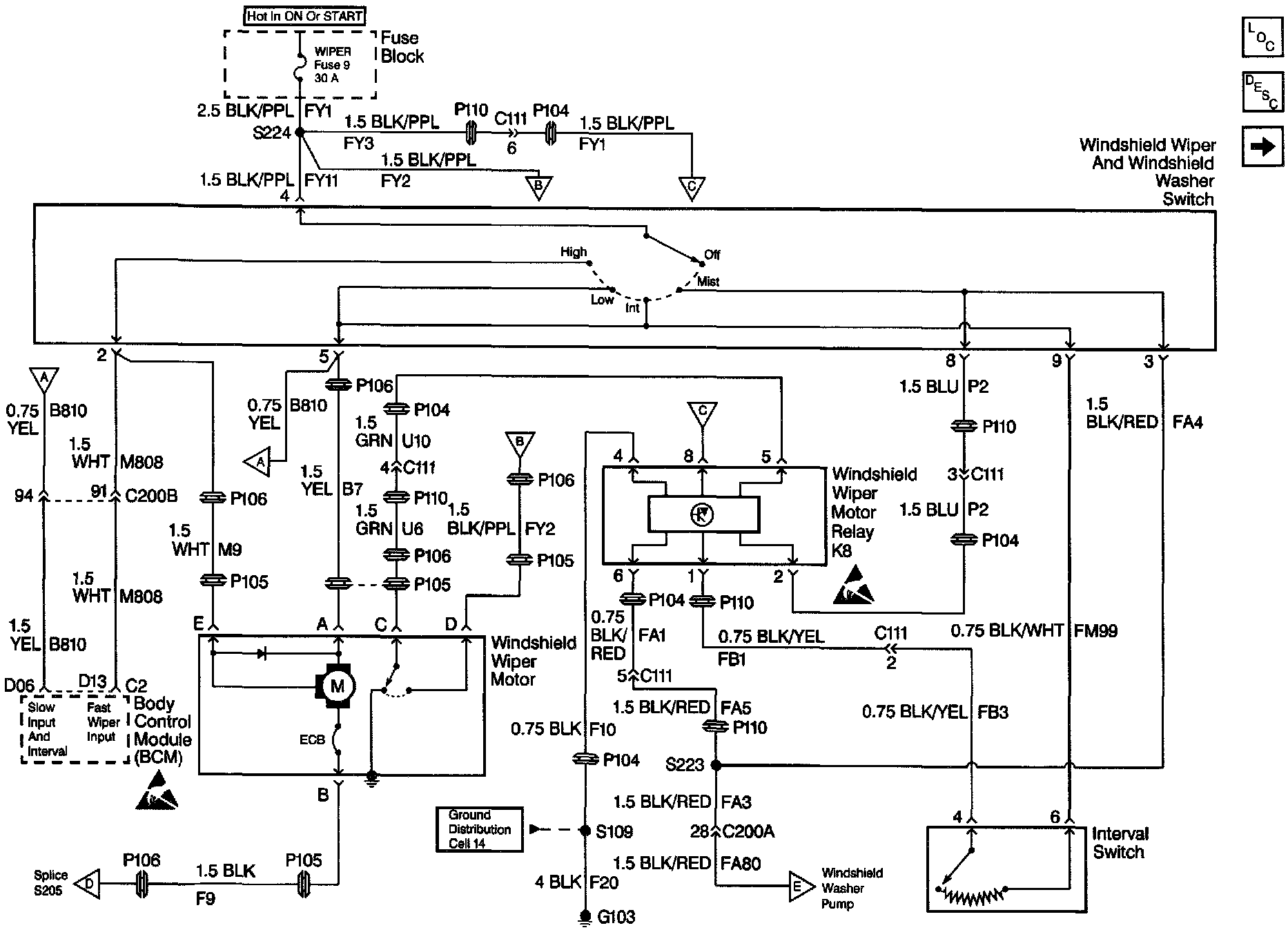

Wiper/Washer System (Pulse) Schematics: WSWA SW, Interval SW, WSW Motor And Relay:
