Text Description

Wiring Systems:

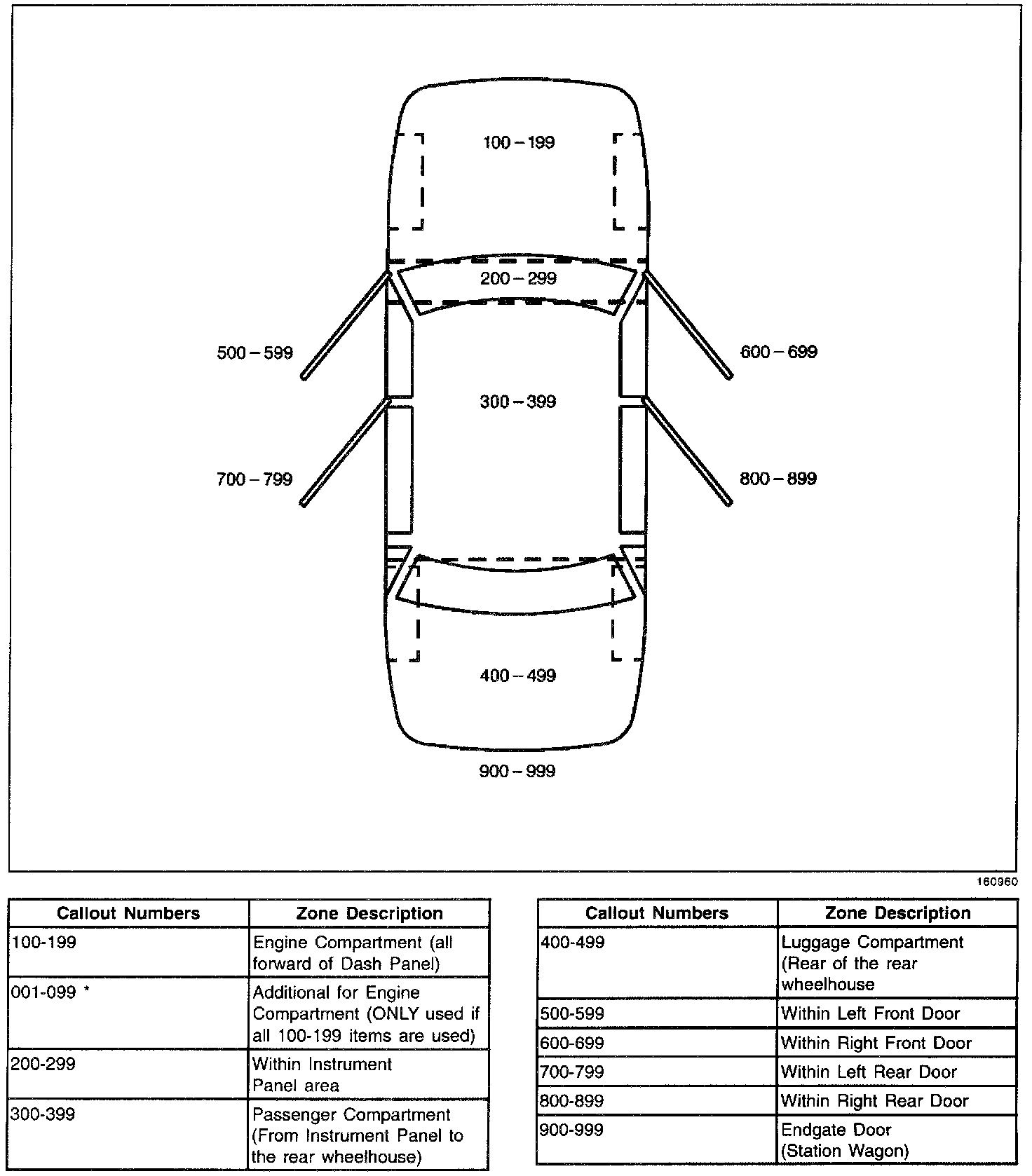

All grounds, in-line connectors, pass-through grommets, and splices are given identifying numbers according to where they are located in the vehicle. This table explains the numbering system.
