Engine Electrical Center Cooling Fan

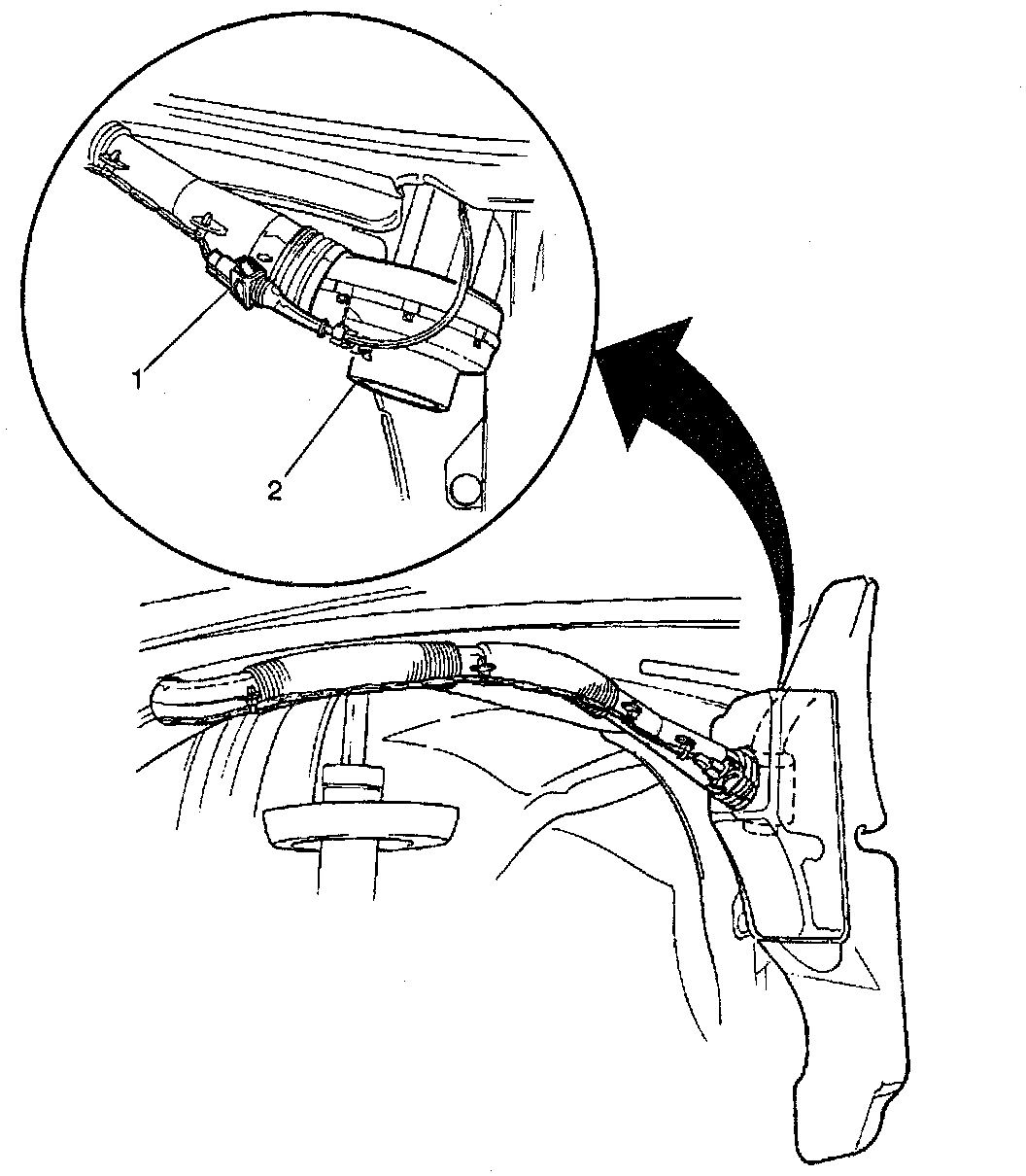

The engine electrical center has a cooling fan (2) and ductwork located in the LF wheelhouse. This fan provides cooling air to the underhood electrical center. For service replacement information, refer to Cooling Fan and Duct Replacement.
