Auxiliary Water Pump: Service and Repair

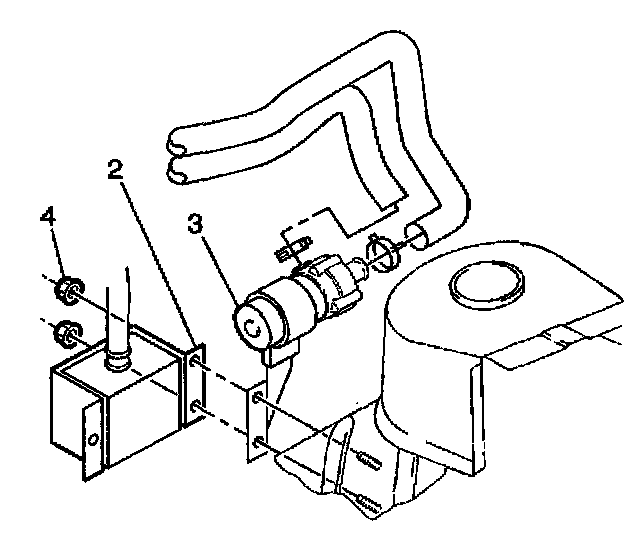

REMOVE OR DISCONNECT
1. Partially drain the cooling system.
2. Disconnect the pump connector.
3. Remove the pump hoses.
4. Remove the cruise control module bracket nuts (4).
5. Remove the bracket.
6. Remove the pump from the wheelhouse panel.

INSTALL OR CONNECT
1. Install the pump to the wheelhouse panel.
2. Position the cruise control module bracket.
3. Install the bracket nuts (4) until fully seated and not stripped.
4. Install the pump hoses.
5. Connect the pump connector.
6. Fill the cooling system.
