Air Delivery and Temperature Control

Power, Ground And DLC:

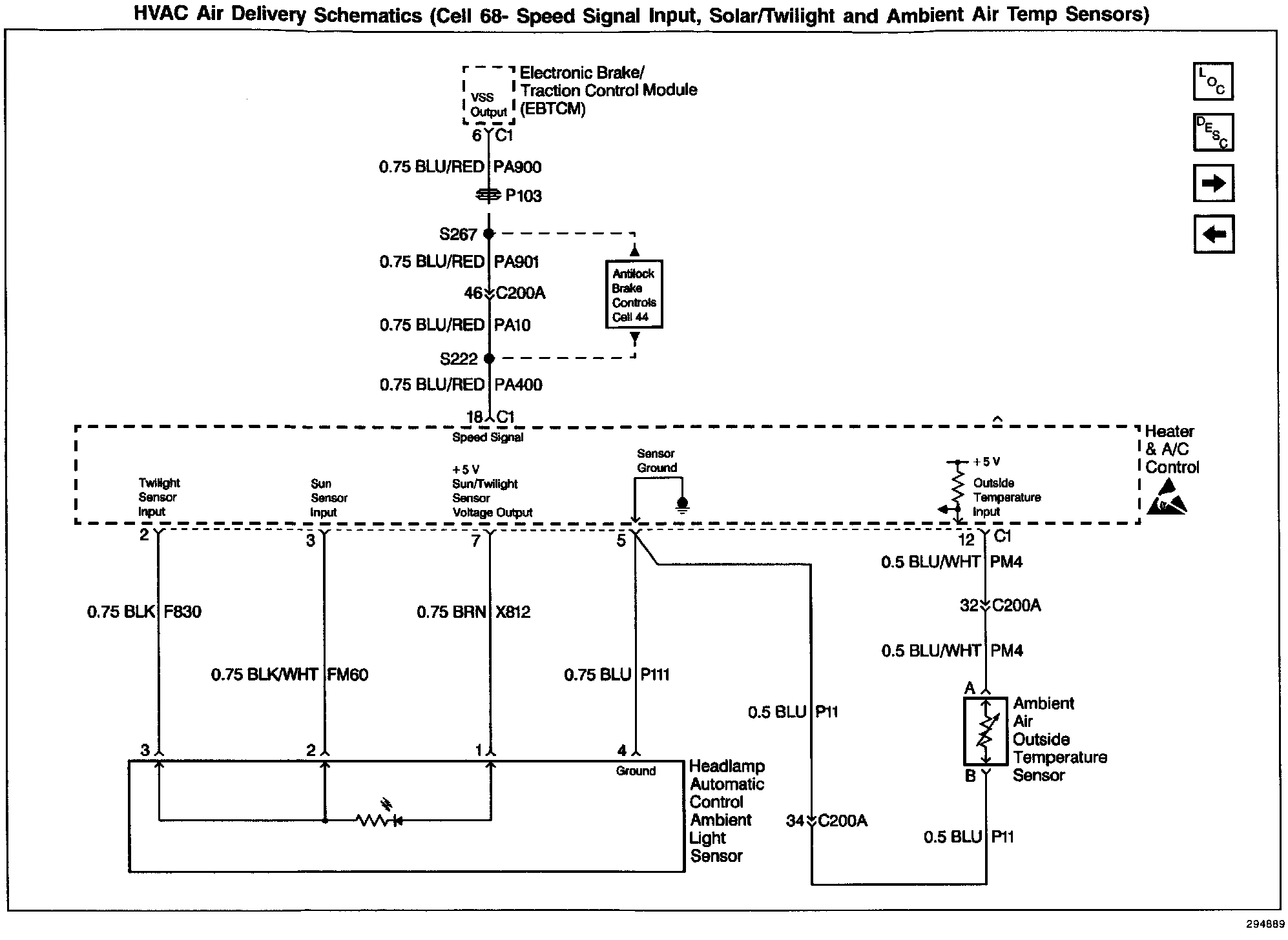

Speed Signal Input And Ambient Air Temp Sensor:

Temperature Valve Actuators:

Inside Air And Mode Valve Actuators:

Defroster Valve Actuator And Vacuum Solenoid Valves:

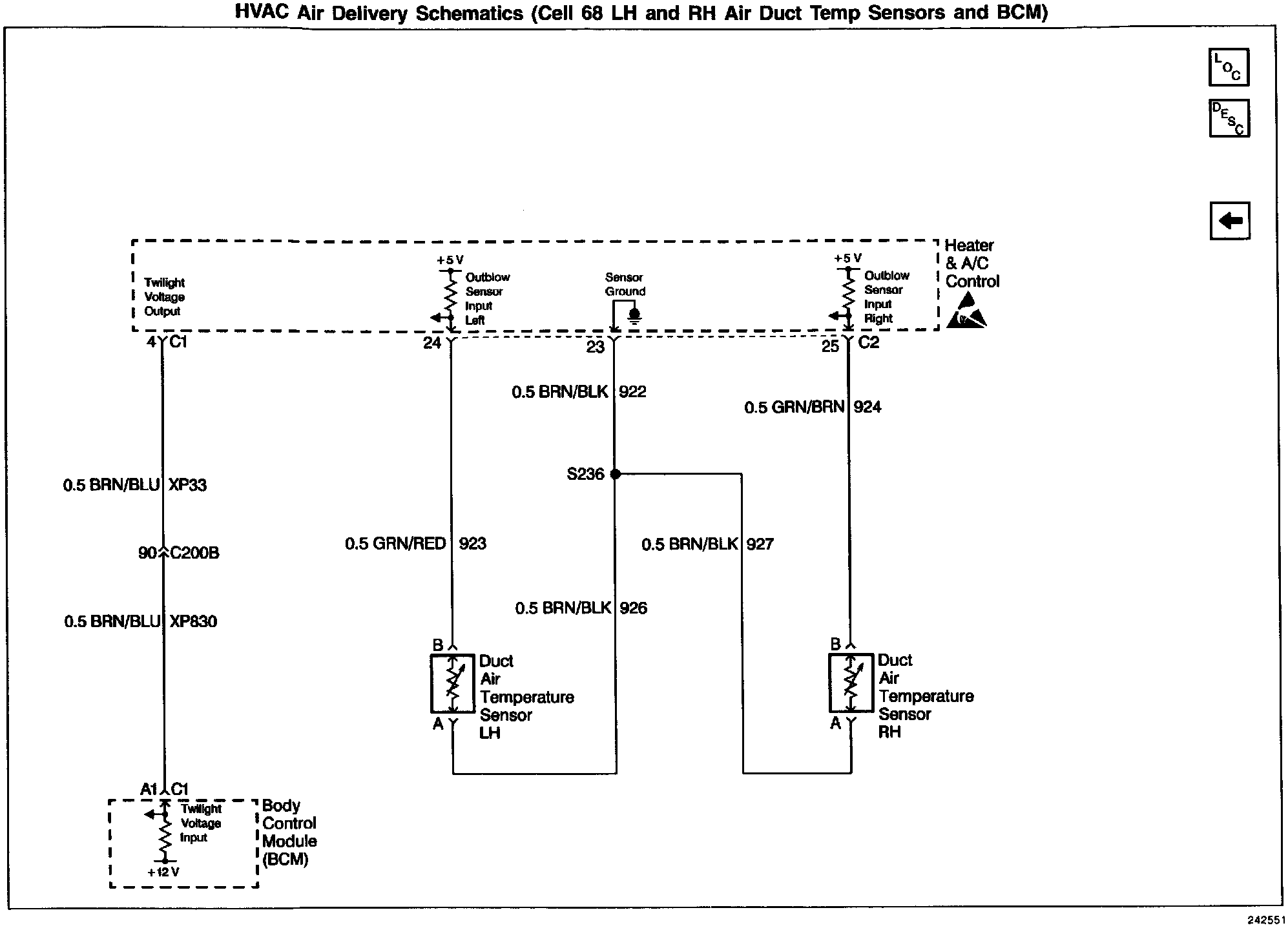

BCM And Air Duct Temp Sensors:
