A/T Malfunction, Airbag, Cruise and Check Engine Indicators
A/T Malfunction, Airbag, Cruise and Check Engine Indicators

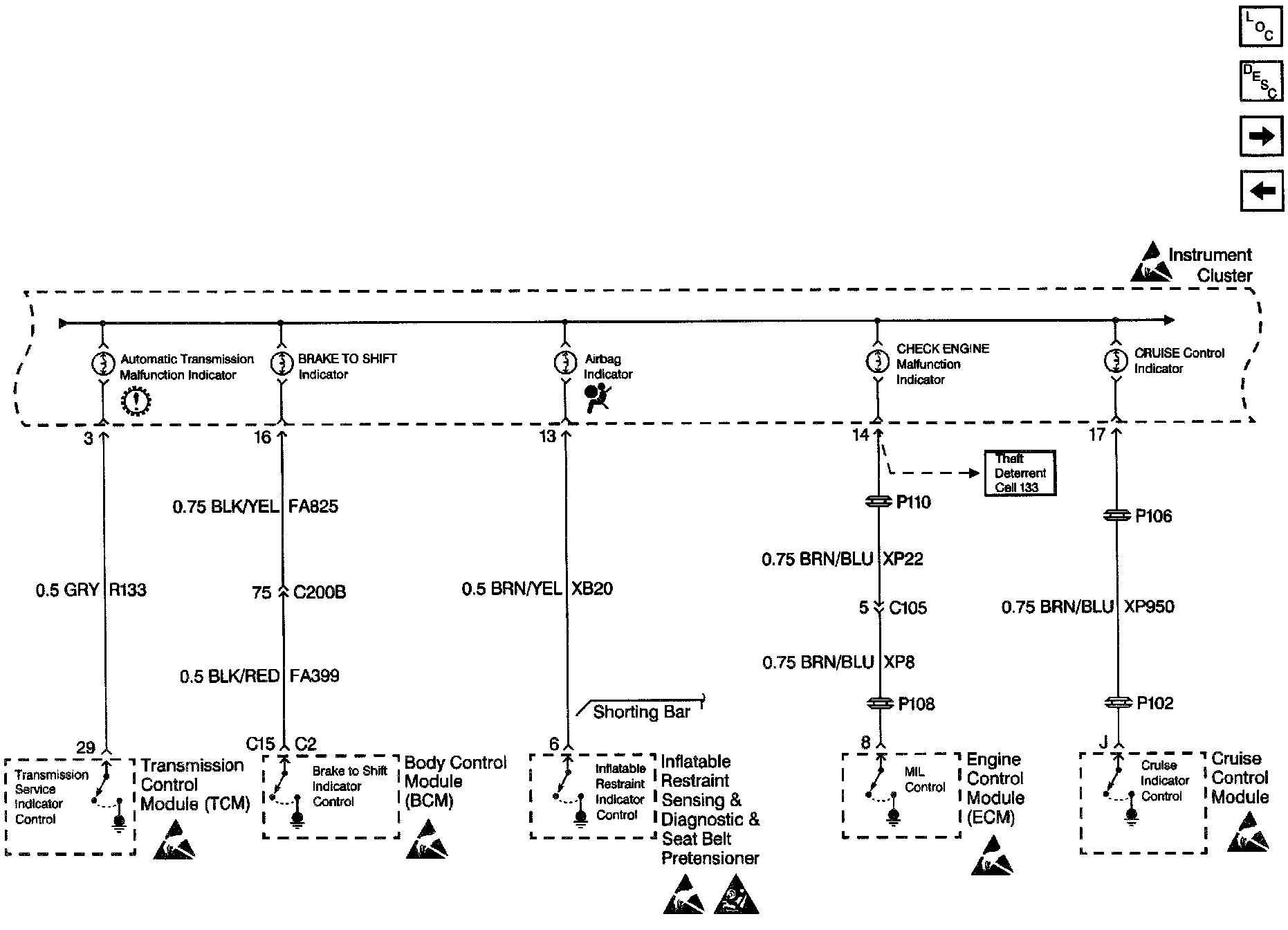

Instrument Cluster: Analog Schematics A/T Malfunction, Airbag, Cruise And Check Engine Indicators:
