Instrument Panel Cluster Gauges

SPEEDOMETER/TACHOMETER REMOVAL PROCEDURE

IP Cluster Gauge Replacement Speedometer/Tachometer: Removal Procedure:

1. Remove the instrument cluster.

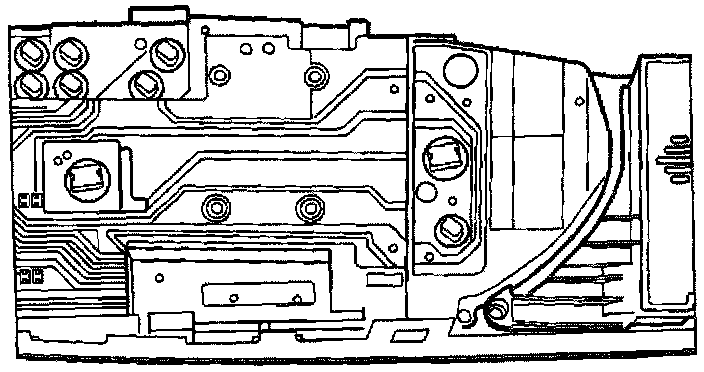

2. Remove the screws from speedometer/tachometer gauge module.

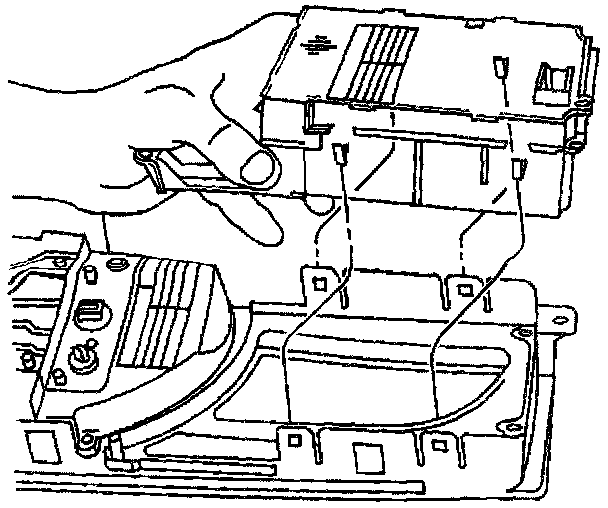

3. Remove the speedometer/tachometer gauge module from lens by pulling locking tabs back and removing.

SPEEDOMETER/TACHOMETER INSTALLATION PROCEDURE

IP Cluster Gauge Replacement Speedometer/Tachometer: Installation Procedure:

1. Install the speedometer/tachometer gauge module to cluster lens.
2. Install the screws to speedometer/tachometer gauge module.

Tighten
Tighten the screws until fully seated but not stripped.

3. Install the instrument cluster.

VOLTAGE/OIL PRESSURE GAUGE REMOVAL PROCEDURE

Voltage/Oil Pressure Gauge: Installation Procedure:

1. Remove the Instrument cluster.
2. Remove the screws from voltage/oil pressure gauge module.
3. Remove the voltage/oil pressure gauge module from lens by pulling locking the tabs back and removing.

VOLTAGE/OIL PRESSURE GAUGE INSTALLATION PROCEDURE
1. Install the voltage/oil pressure gauge module to lens.
2. Install the screws to voltage/oil pressure gauge module.

Tighten
Tighten the screws until fully seated but not stripped.

3. Install the instrument cluster.
