Courtesy Lamp: Service and Repair
REMOVAL PROCEDUREDoor Lamp Replacement: Removal Procedure:

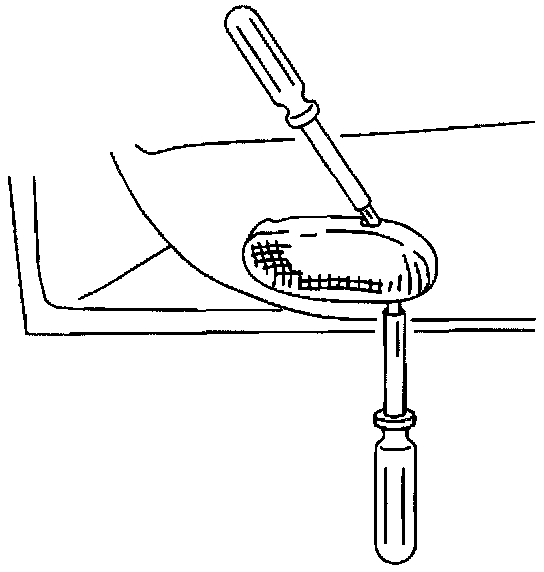

1. Use screwdrivers to carefully lever the door courtesy lamp from the door and remove the door courtesy lamp.
Door Lamp Replacement: Removal Procedure:
2. Remove the metal protective cover from the back side of the door courtesy lamp (1).
3. Remove the bulb.
INSTALLATION PROCEDURE
Door Lamp Replacement: Installation Procedure:
1. Install the bulb.
2. Install the metal protective cover to the back of the door courtesy lamp (1).
3. Snap the door courtesy lamp in place to install.
