Interior Lamps

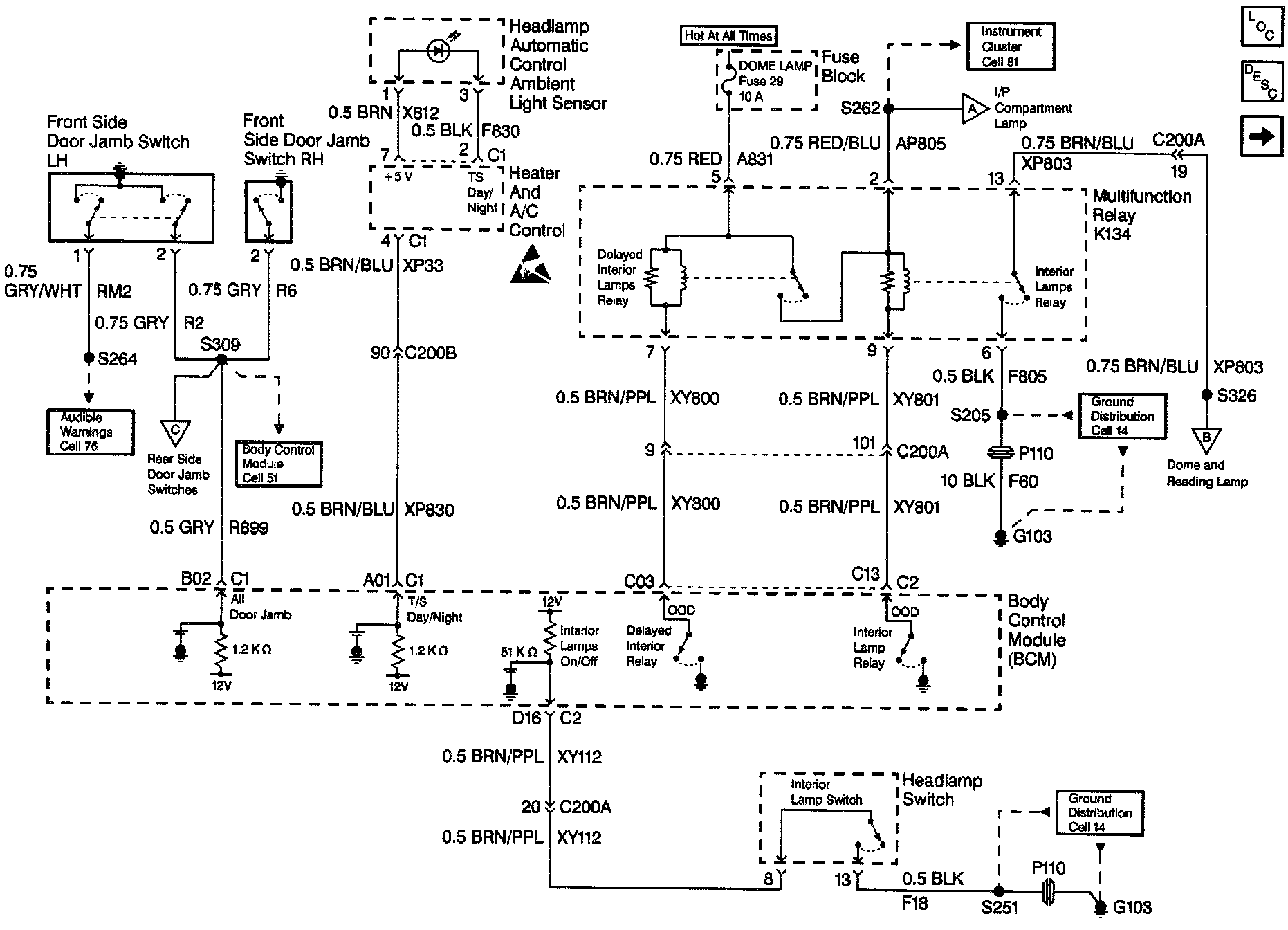

Interior Lights Schematics: BCM, Multifunction Relay K134 And LH Front Side Door Jamb Switch:

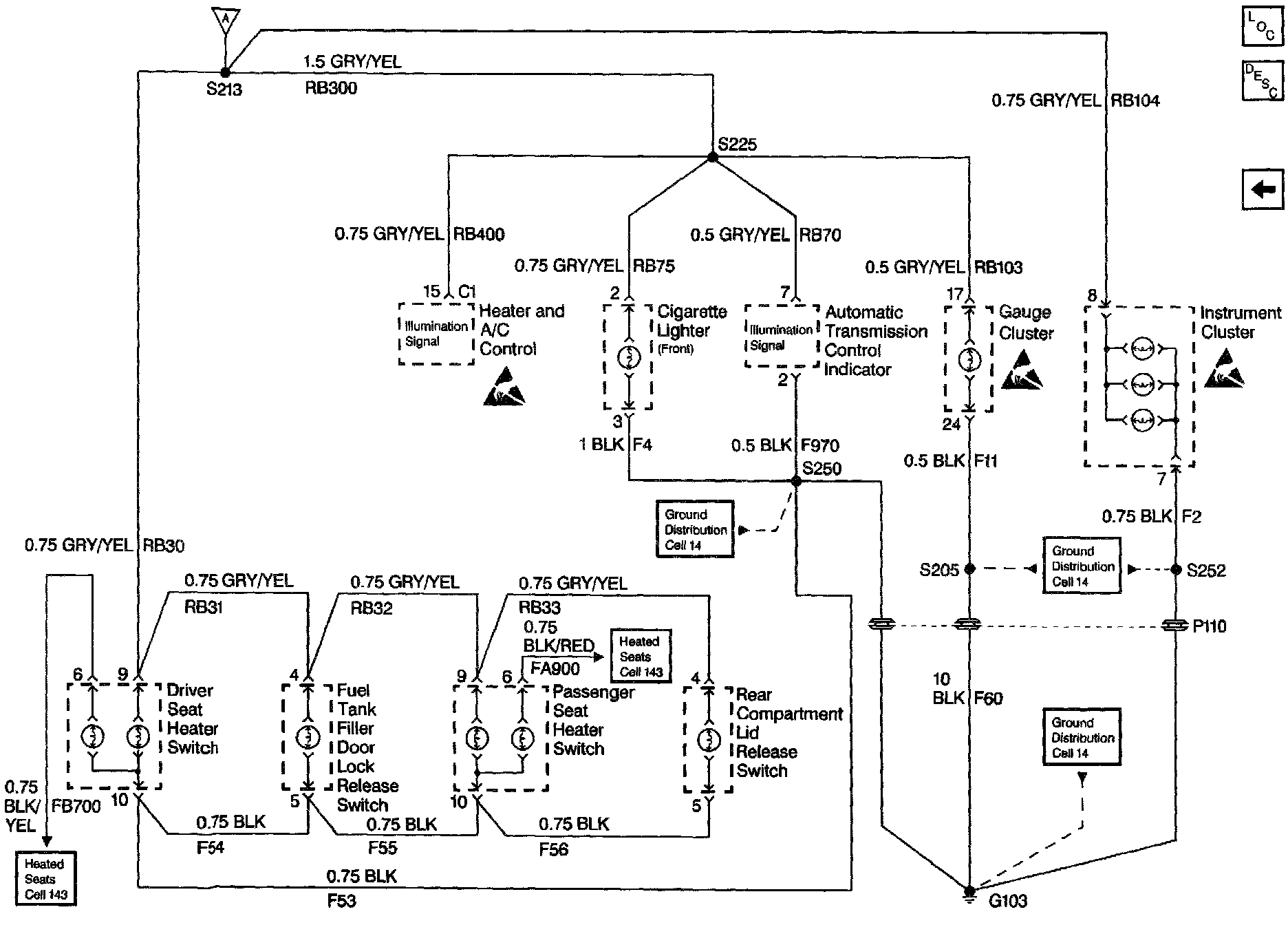

Interior Lights Schematics: Sunshade Mirror LPS, Dome And Reading LPS And I/P Compartment LP:

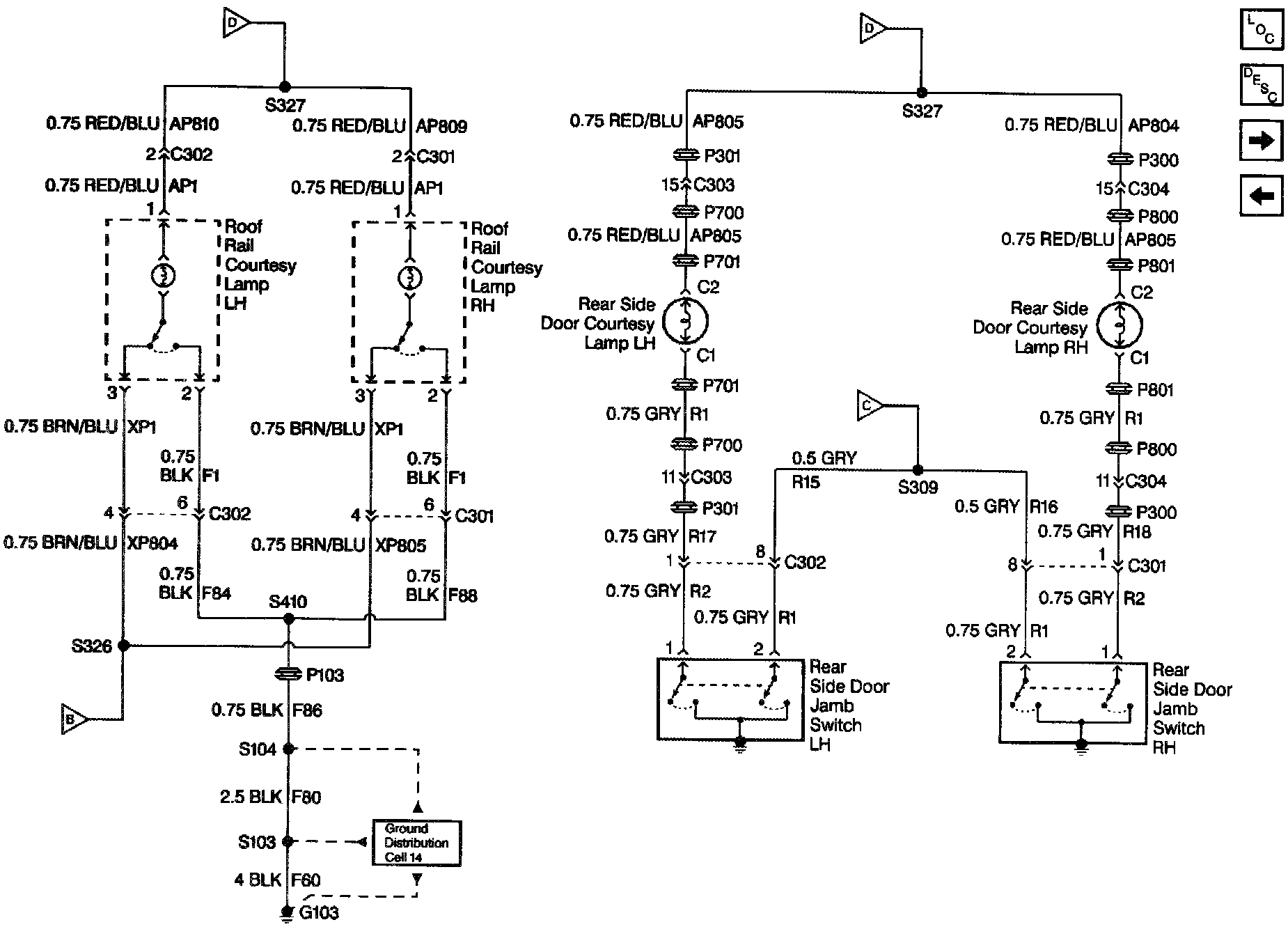

Interior Lights Schematics: Roof Rail CTSY LPS And Rear Side Door Jamb Switches:




Interior Lights Schematics: CTSY LPS And Front Side Door Lock Switch LP:

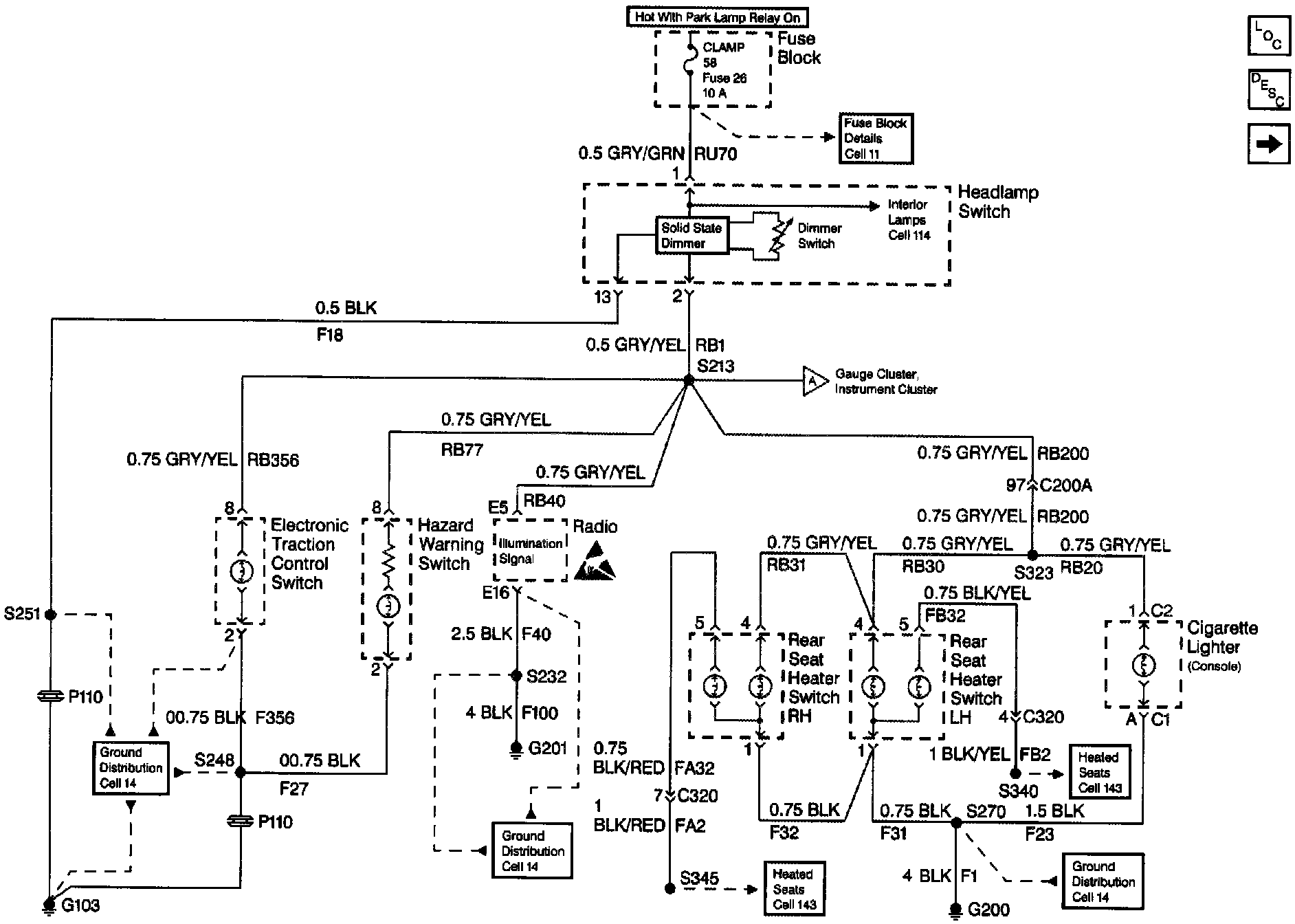

Interior Lights Schematics: HDLP Switch, Rear Seat HTR Switches And Radio:




Interior Lights Dimming Schematics:
