ROOF RAIL COURTESY READING LAMP

Side Rail Lamp Replacement: Removal Procedure:

The roof rail courtesy reading lamps are located over the rear doors. The roof rail courtesy reading lamp snaps into the upper rear quarter trim finish panel. Service the roof rail courtesy reading lamp as a unit, with the exception of the bulbs.

Removal Procedure
1. Remove the root rail courtesy reading lamp.

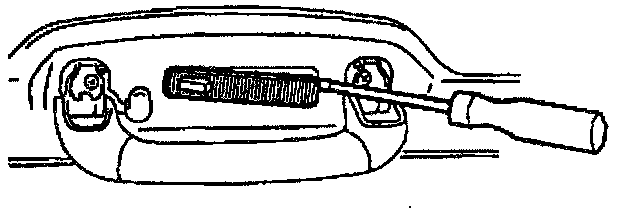

1.1. Insert a flat-bladed screwdriver to the side edge.
1.2. Push downward to release.

Side Rail Lamp Replacement: Removal Procedure:

2. Disconnect the electrical connectors from the roof rail courtesy reading lamp.

Installation Procedure

Side Rail Lamp Replacement: Installation Procedure:

1. Install the electrical connectors to the roof rail courtesy reading lamp.

Side Rail Lamp Replacement: Installation Procedure:

2. Install the roof rail courtesy reading lamp.
