A/T - Revised Diagnostics, Component Resistance Chart
File In Section: 7 - TransmissionBulletin No.: 77-71-52
Date: February, 1997
SERVICE MANUAL UPDATE
Subject:
Section 7A - Automatic Transmission/Transaxle - DTC/Diagnostic Updates

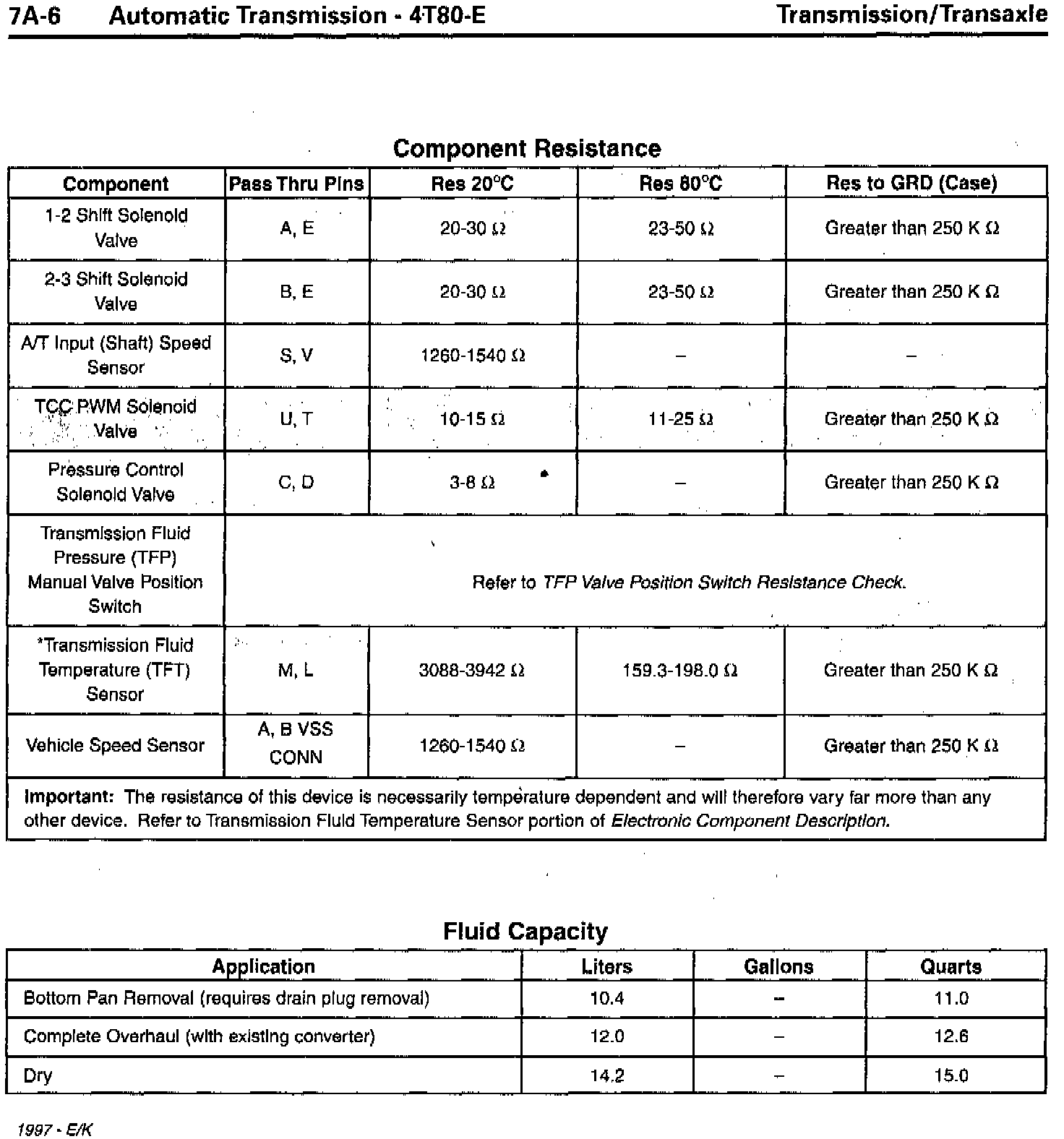

(Revised Component Resistance Chart)
Models:
1996-97 Cadillac DeVille, Concours, Eldorado, Seville
1997 Cadillac d'Elegance
1996-97 Oldsmobile Aurora
with HYDRA-MATIC 4T80-E Transaxle/Transmission (RPO MH1)
���D:

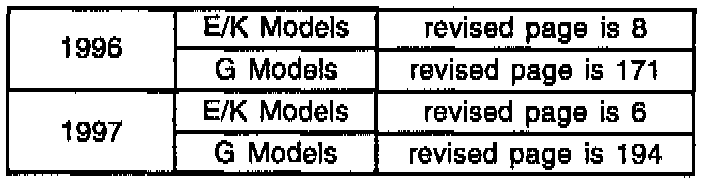

Included are the new updated pages of the 1996 and 1997 Service Manual Section 7A with a revised Component Resistance Chart.
Add these pages to your 1996 and 1997 Service Manuals
