Lights - Revised Park & Head Lamp Diagnostics, Inop
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 73-81-49
Date: October, 1997
SERVICE MANUAL UPDATE
Subject:

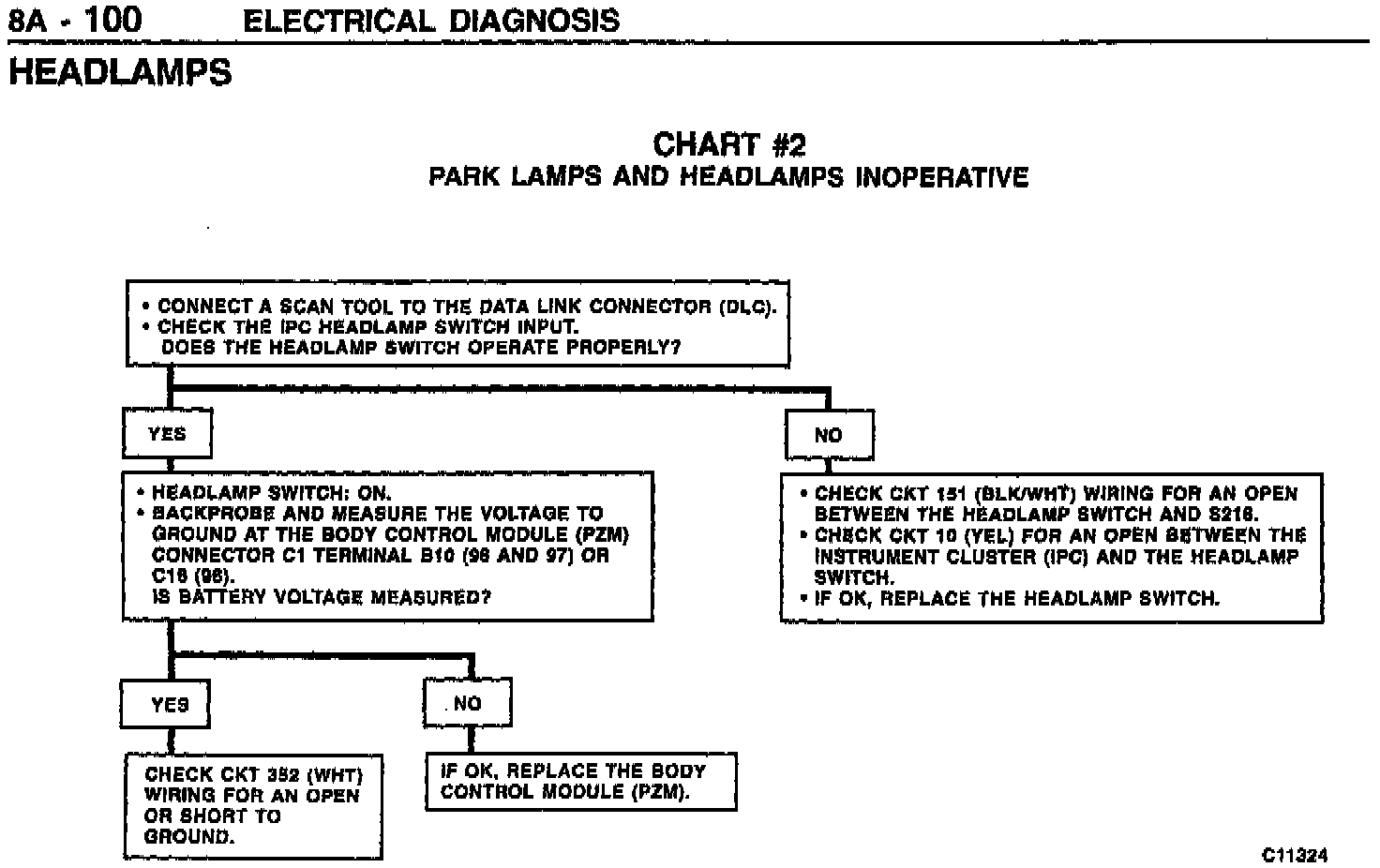

Sections 8A-100/101/102 - Revised Chart # 2
(Park Lamps and Head lamps Inoperative)
Models:
1996-98 Cadillac Concours, DeVille, Eldorado
1996-97 Cadillac Seville
This bulletin is being issued to revise Chart # 2 (Park Lamps and Headlamps Inoperative) on Page 8A-100-16 (1997-98 Service Manuals) and Pages 8A-101-14 and 8A-102-9 (1996 Service Manual).
The body control module (PZM) connector C1 should not be disconnected when checking for battery voltage.
