Wiper Blade: Testing and Inspection

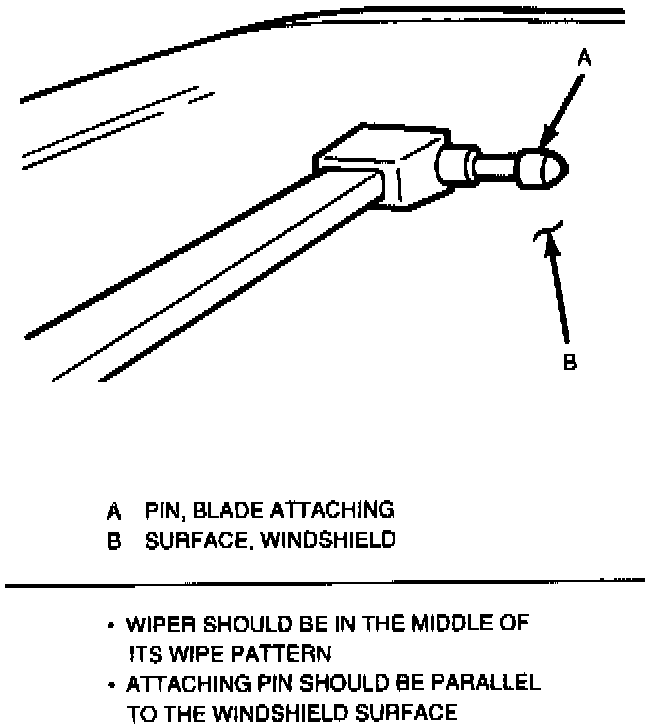

Blade Assembly Mounting Angle Check:

With the wiper arm and blade assemblies in the middle of a wipe stroke. remove the blade assemblies. Visually check that the blade attaching pin on each wiper arm is parallel to the windshield. Replace the wiper arm assembly if necessary.
