Wiper Motor Linkage: Service and Repair

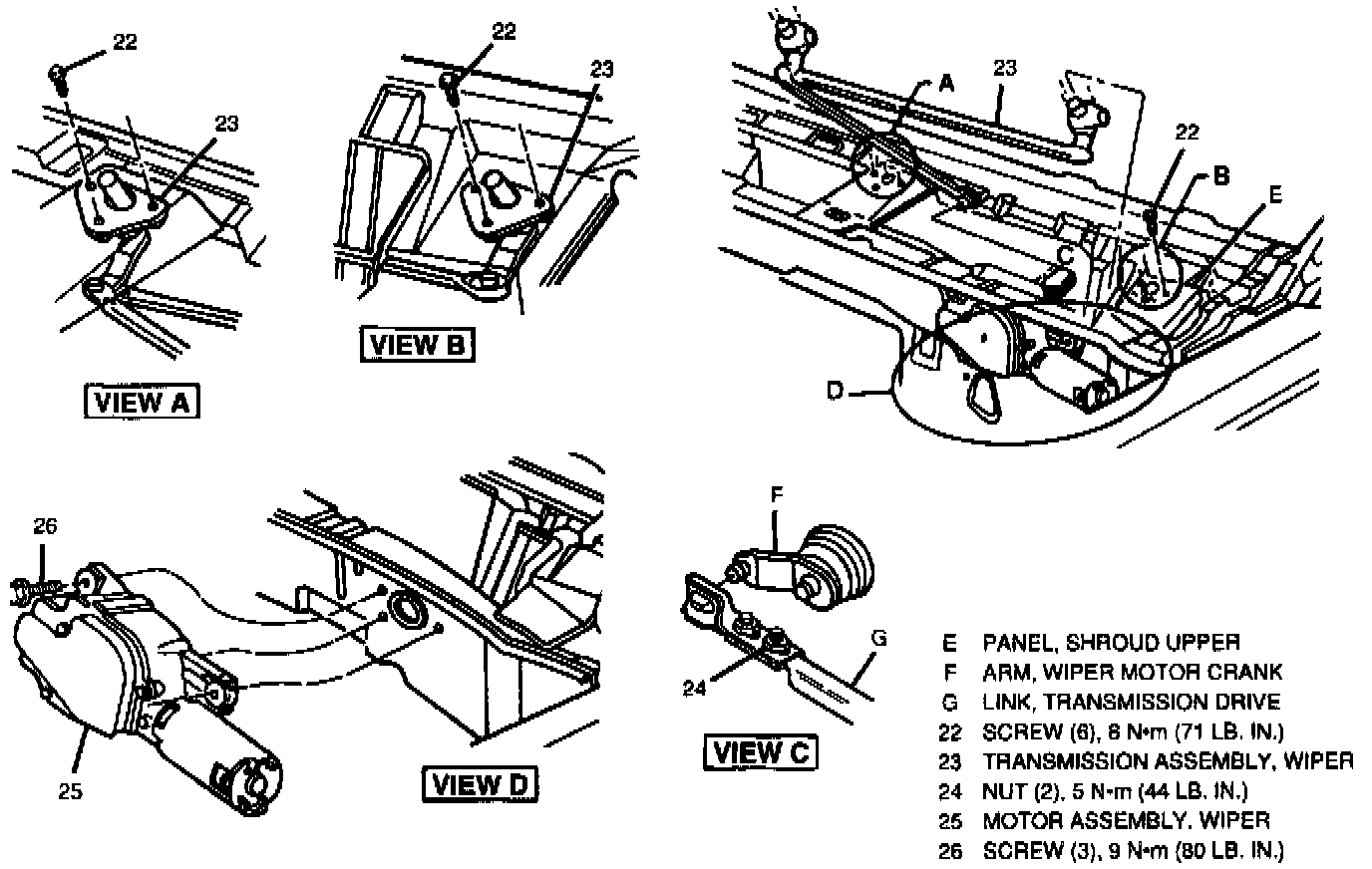

Wiper Arm And Transmission Assembly (Typical):

J 39232 Wiper Transmission Separator (Typical Usage):

J 39529 Wiper Transmission Installer (Typical Usage):

Remove or Disconnect

Tool Required:
J 39232 Wiper Transmission Separator

1. Wiper arm and blade assemblies.
2. Shroud air inlet grille panel.
3. Transmission drive link from wiper motor crank arm using J 39232.
4. Six screws (22).
5. Wiper transmission assembly (23) by guiding it through access hole in shroud upper panel.

Install or Connect

Tool Required:
J 39529 Wiper Transmission Installer

NOTICE: Refer to Service Precautions.

1. Loosen but do not remove two transmission drive link adjustment nuts (24).
2. Position wiper transmission assembly (23) in plenum chamber through shroud upper panel openings.
3. Six screws (22) loosely.
4. Transmission drive link socket to wiper motor crank arm ball using J 39529.
5. Align transmission assembly and tighten six screws (22). Then, tighten two nuts (24).

Tighten
^ Screws (22) to 8 N.m (71 lb. in.).
^ Nuts (24) to 5 N.m (44 lb. in.).

6. Shroud air inlet grille panel.
7. Wiper arm and blade assemblies.
