Center Pillar Outer Applique Replacement

REMOVAL PROCEDURE

Center Pillar Outer Applique Replacement: Removal Procedure:

1. Open both of the doors.
2. Unsnap the center pillar outer applique cover.
3. Slide the appliqu� down.

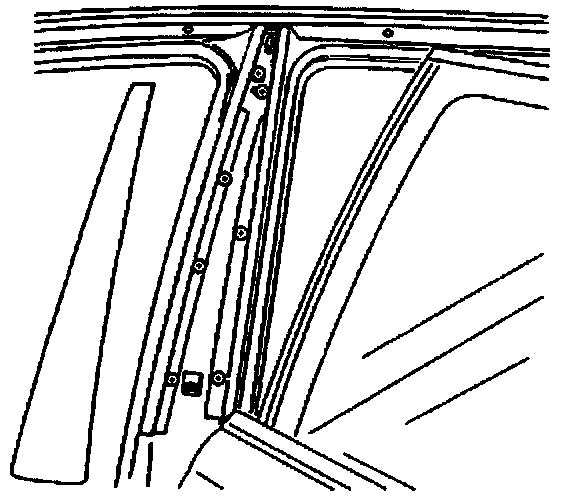

Center Pillar Outer Applique Replacement: Removal Procedure:

4. Remove the center pillar outer applique retainer plate screws.
5. Remove the center pillar outer applique weather-strip.
6. Remove the roof rail molding.
7. Remove the center pillar outer applique retainer plate.

INSTALLATION PROCEDURE

Center Pillar Outer Applique Replacement: Installation Procedure:

1. Install the roof rail molding.
2. Install the center pillar outer applique retainer plate.
3. Install the center pillar outer applique weather-strip.
4. Install the center pillar outer applique plate screws.

Tighten
Tighten center pillar outer applique plate screws until fully seated and not stripped.

Center Pillar Outer Applique Replacement: Installation Procedure:

5. Slide the center pillar outer applique upwards while snapping into place.
6. Close both doors.
