Molding Replacement - Door Body Side

REMOVAL PROCEDURE

Molding Replacement - Door Body Side: Removal Procedure:

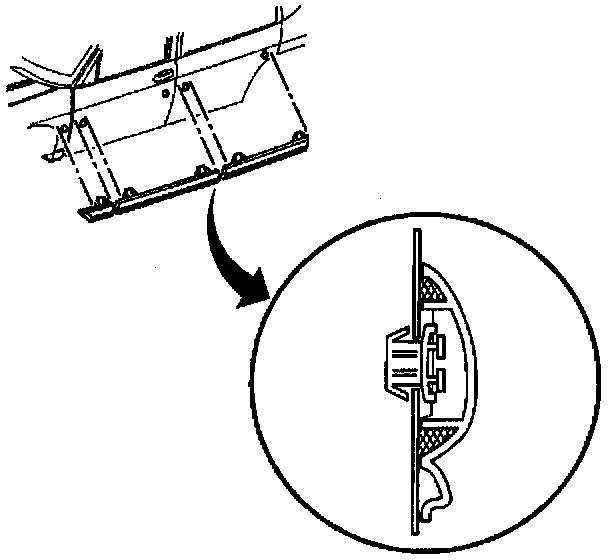

1. Remove the body side molding:
^ Starting at the rear, pry the molding away from the door using a plastic tool.
^ Pull the molding from the door when free of the door edge.
^ Discard the clips.
^ Replace the molding.
2. Clean the door surface using an oil free naphtha or isopropyl alcohol.

INSTALLATION PROCEDURE

Molding Replacement - Door Body Side: Installation Procedure:

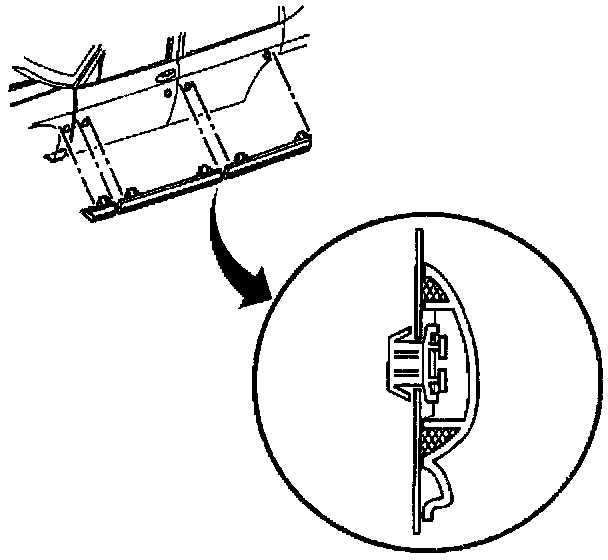

1. Install the body side molding:
^ Warm the panel with a heat lamp.

Specification
Body minimum panel temperature: 21°C (70°F)

^ Peel the backing from the molding.
^ Align the molding and the new clips with the door holes.
^ Insert the molding.
^ Firmly press the molding into place.
2. Inspect that the molding does not overlap at the following locations:
3. The door edge
4. The door edge guard
5. The fender
