Mirror Replacement - Power

REMOVAL PROCEDURE

Mirror Replacement - Power: Removal Procedure:

1. Remove the front door assist handle and molding.

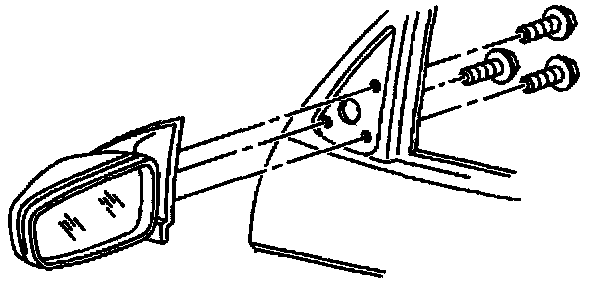

2. Remove the mirror screws.
3. Remove the mirror from the door.

Mirror Replacement - Power: Removal Procedure:

4. Disconnect the outside rearview mirror electrical connector.

INSTALLATION PROCEDURE

Mirror Replacement - Power: Installation Procedure:

1. Connect the mirror electrical connector.

Mirror Replacement - Power: Installation Procedure:

2. Install the mirror to the door.
3. Install the mirror screws.

Tighten
Tighten mirror screws to 10 N.m (89 lb in).

4. Install the front door assist handle and molding.
