Cruise Control Cable Adjustment
REMOVAL PROCEDURECruise Control Cable Replacement: Removal Procedure:
1. Remove the cruise control cable from the heater hose clip (2).
Cruise Control Cable Adjustment:

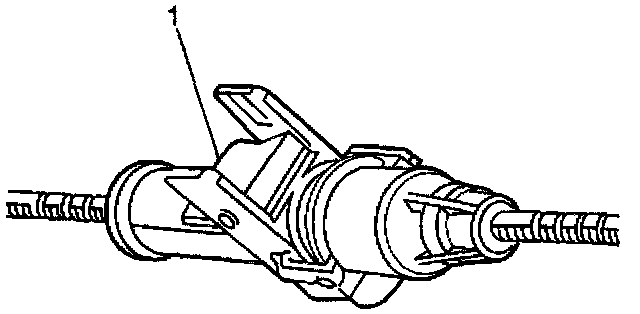

2. Open the cable adjusting lever (1).
Cruise Control Cable Adjustment:

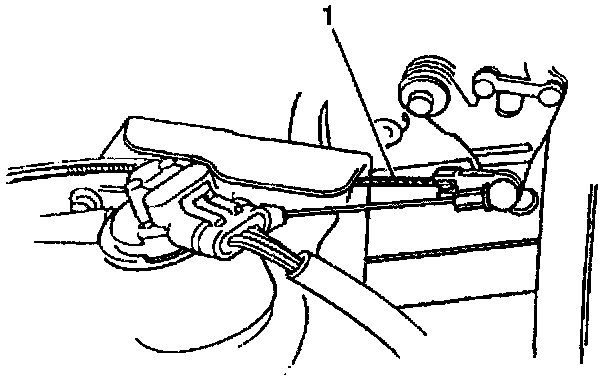

3. Slide the cable (1) together or apart in order to adjust the vertical endplate:
Specification
Vertical endplay (minimal deflection): 2.0 to 4.0 mm (0.08 to 0.16 in)
Cruise Control Cable Adjustment:

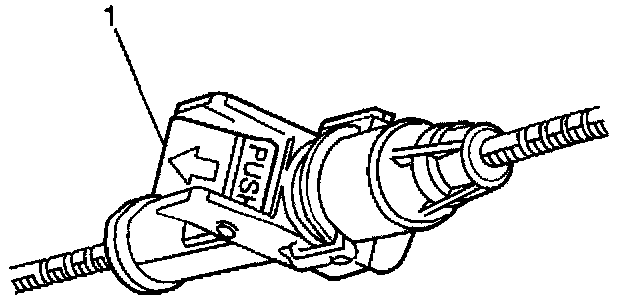

4. Close the adjusting lever (1).
Cruise Control Cable Replacement: Removal Procedure:
5. Verify the cruise control system operation. Install the cruise control cable to the heater hose clip (2).
