Cruise Control Cable Replacement
REMOVAL PROCEDURECruise Control Cable Replacement: Removal Procedure:

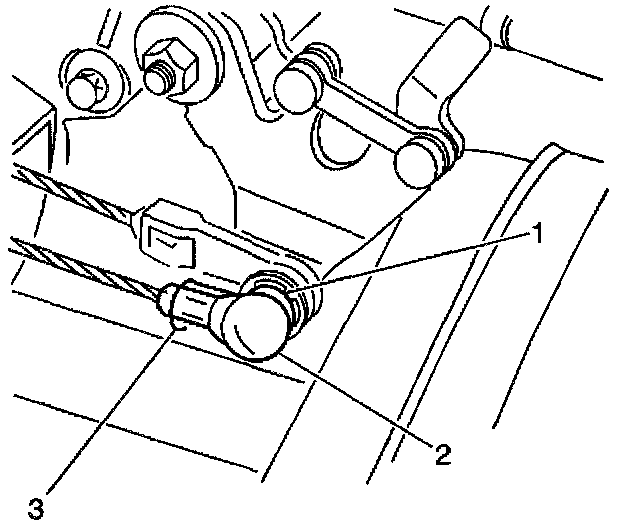

1. Remove the accelerator cable retaining clip (3) from the accelerator cable.
2. Remove the accelerator cable (2) from the throttle linkage shaft.
3. Remove the cruise control cable retaining clip (1) from the throttle linkage shaft.
4. Remove the cruise control cable from the throttle lever.
5. Remove the throttle linkage bracket bolts at the intake plenum.
Cruise Control Cable Replacement: Removal Procedure:

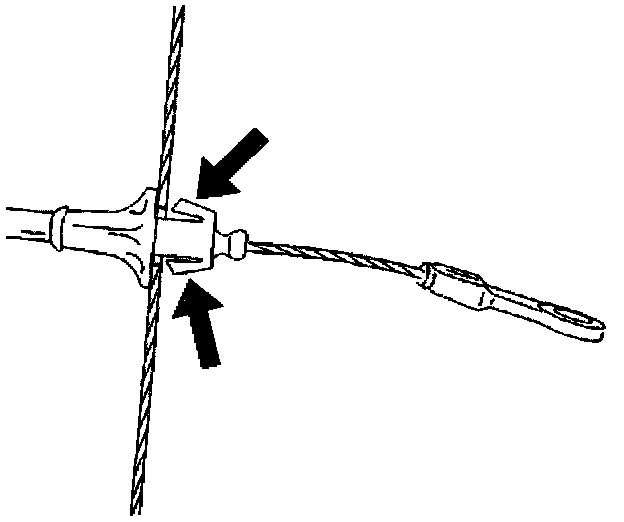

6. Slightly pull away the bracket from the plenum in order to access the cable locking lugs.
7. Depress the cable lugs in order to remove the cruise control cable housing from the bracket.
Cruise Control Cable Replacement: Removal Procedure:
8. Remove the cruise control cable from the heater hose clip (2).
Cruise Control Cable Replacement: Removal Procedure:

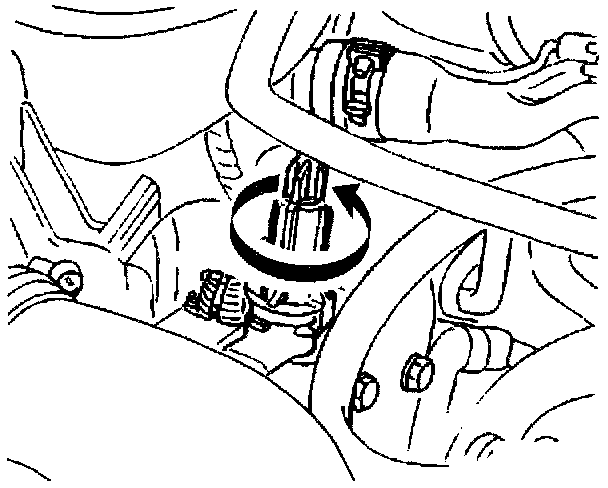

9. Twist the cruise control cable guide tube 1/4 turn counterclockwise in order to remove from the actuator.
Cruise Control Cable Replacement: Removal Procedure:
10. Remove the cruise control cable end from the actuator ribbon being careful not to twist the ribbon.
INSTALLATION PROCEDURE
Cruise Control Cable Replacement: Removal Procedure:
1. Install the cruise control cable end to the actuator ribbon being careful not to twist the ribbon.
Cruise Control Cable Replacement: Installation Procedure:

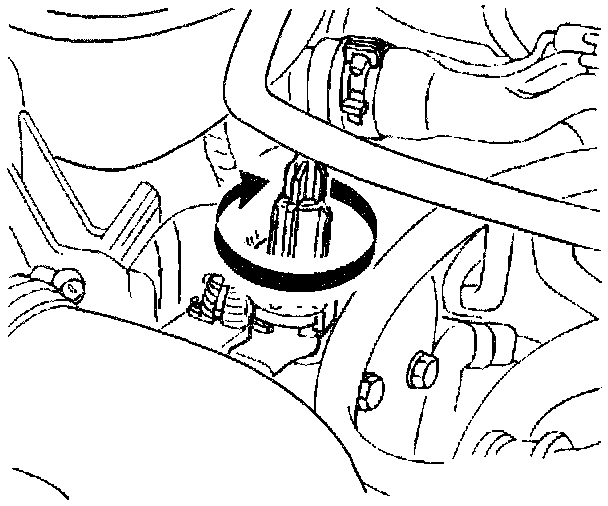

2. Twist the cruise control cable guide tube 1/4 turn clockwise in order to install to the actuator.
Cruise Control Cable Replacement: Removal Procedure:
3. Install the cruise control cable to the heater hose clip (2).
4. Install the throttle linkage bracket to the plenum.
5. Install the throttle linkage bracket bolts.
Tighten
Tighten the bolts to 5 N.m (71 lb in).
Cruise Control Cable Replacement: Removal Procedure:
6. Firmly seat the cruise control cable housing into the bracket, ensuring that the lugs expand in the bracket.
Cruise Control Cable Replacement: Removal Procedure:
7. Install the cruise control cable to the throttle linkage shaft.
8. Install the cruise control cable retaining clip (1) to the throttle linkage shaft.
9. Install the accelerator cable (2) to the throttle linkage shaft.
10. Install the accelerator cable retaining clip (3) to the accelerator cable.
11. Adjust the cruise control cable.
