Marker Lamp

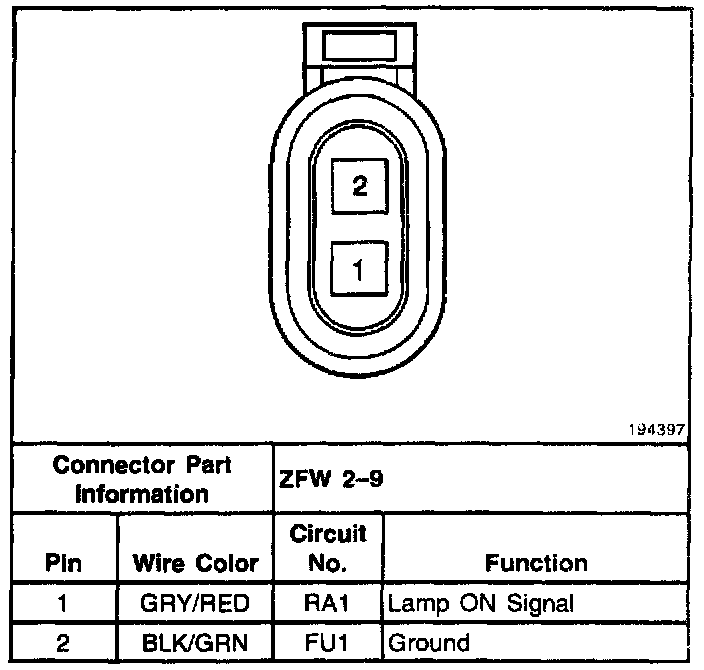

LH Front Side Marker Lamp:

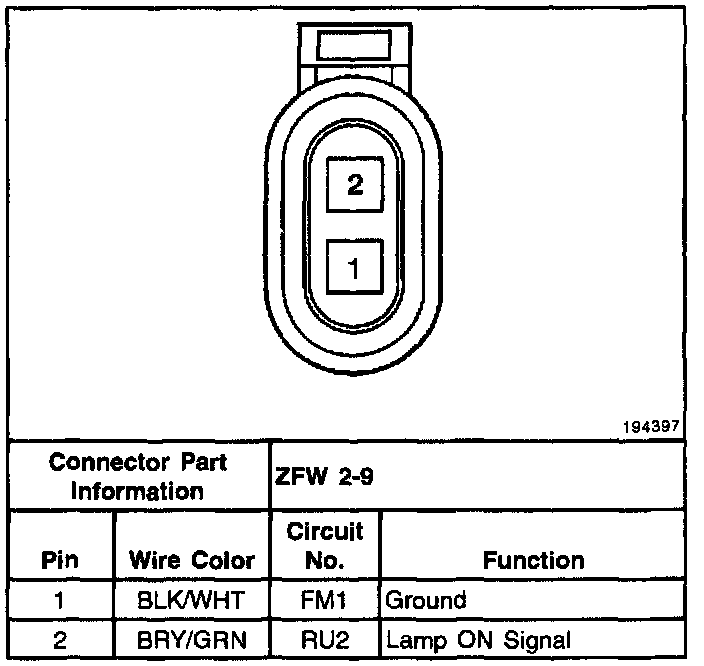

LH Rear Side Marker Lamp:



RH Front Side Marker Lamp:



RH Rear Side Marker Lamp:
