Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

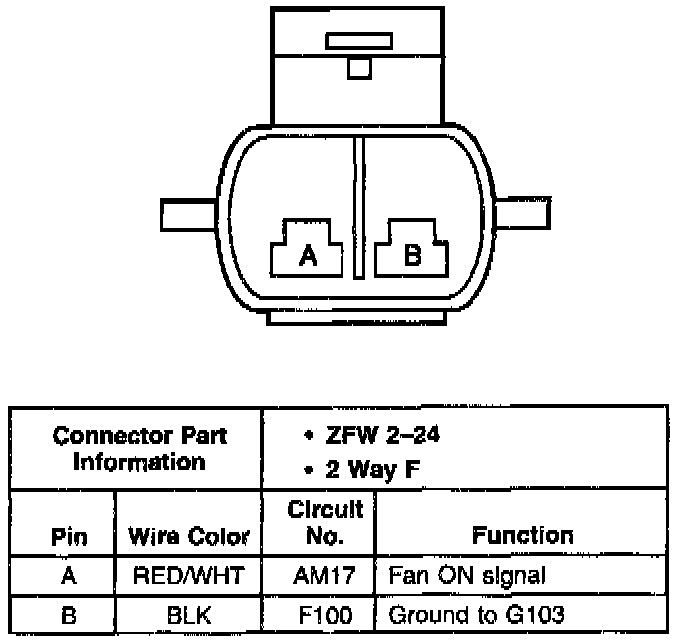

Electric Cooling Fan:

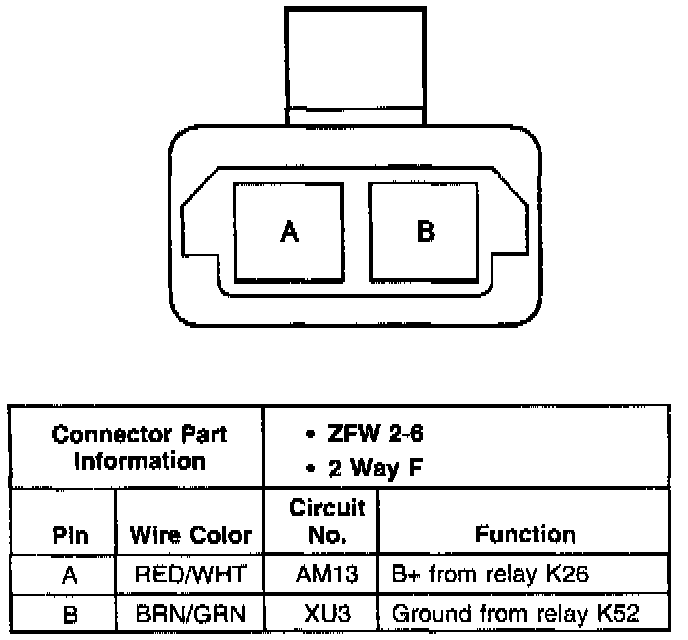

Auxiliary Engine Coolant Fan #1:
Auxiliary Engine Coolant Fan #2:

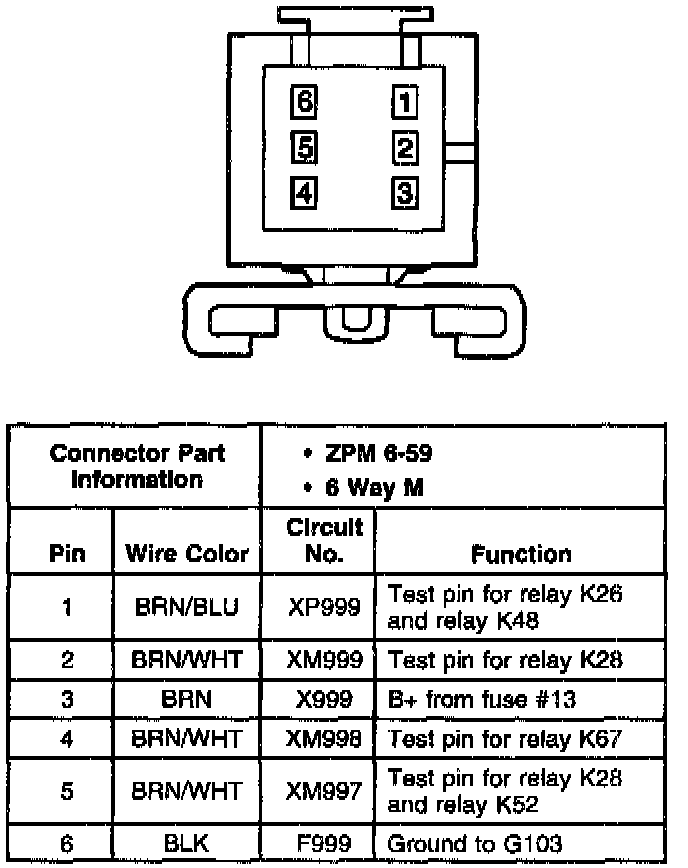

Coolant Fan Test Connector:
