Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay
Fan Control Relay:
Fan Control Relay K28:

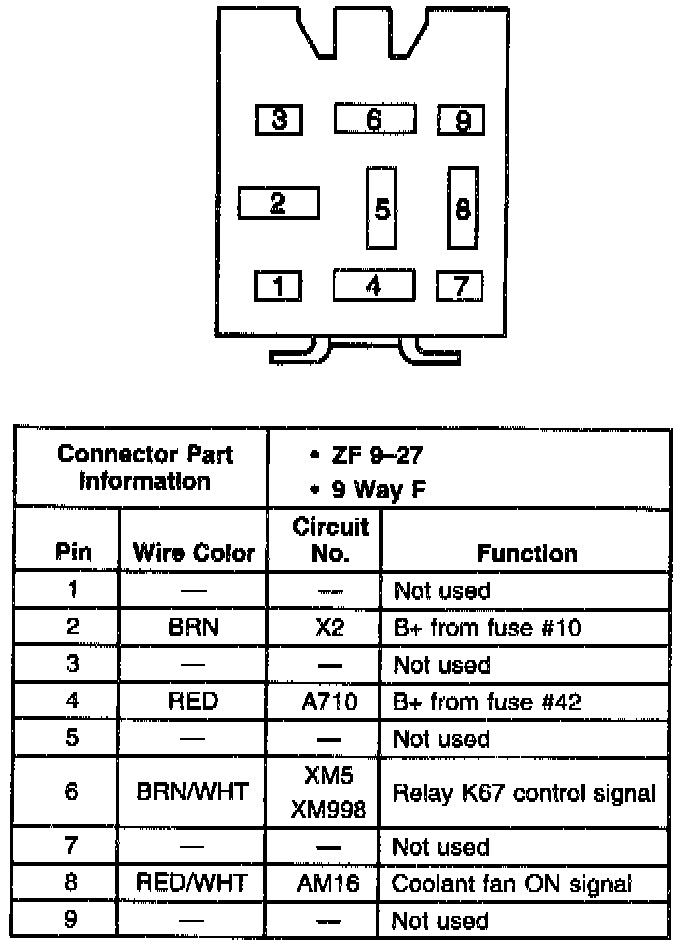

Fan Control Relay K52:
Fan Control Relay K67:
Fan Control Relay K87:
